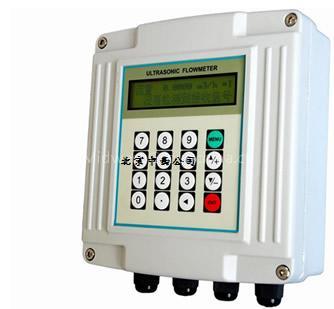

Pipe clamp-on ultrasonic flow meter

featureshigh accuracybetter than 0.5% linearity, repeatability better than 0.2% measurement accuracy of better than ± 1%measurement rangeselection of different types of sensors can be realized diameter DN15 ~ DN6000mm pipeline flow measurementsto support Chinese and English menuversions of the flow meter to support Chinese or English menu, convenient andreliablelow-voltage, multi-pulse transmitter, accuracy, service life and reliability significantly improvedanti-jamming capabilityusing double-balanced differential signal transmitter and receiver circuit, effectively resist the inverter, tower, power lines and other strong sources of interferencepowerful memory　512 days before the automatic memory, the first 128 months, the cumulative flow of the first 10 years, 64 auto memory before the call and power time and traffic, 32 days before the automatic memory meter is operating normally.　Basic parametersSize: 298 × 298 × 110mmoff once table DC8-36V, the second table AC220V or DC24Vinput 3-way 4 ~ 20mA analog inputs, two three-wire PT100 RTD signal input-output isolation RS232/RS485 output, 2 isolated OCT output, 1 isolated 4-20mA output (passive)
