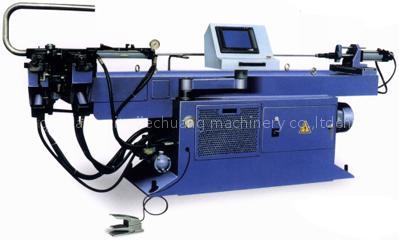

Pipe Bending Machine
Specifications
- Brand
- jiechuang
- Origin
- China
- Price Term
- FOB
Pipe Bending Machine is a Industrial Power Supplies product. Key specs — Brand: jiechuang; Origin: China; Price Term: FOB.
Product Description
· Microcomputer controlled touch-screen, NC model group, and inputting outputting program by human-computer interlocution mode, strong function for operation.
· Construction of the machine base is steady, not easy to be distorted.
· The cooling system with large recycling volume let the machine running more stable.
· 9 kinds of angle for bending pipe can be set at each shelf, and the memory can store 60 sets of archives.
· The machine has slow speed location function, repeat precision is ±0.1°
· Error information will be showed on screen to help operators solve it at once.
· Full Chinese /English double languages operation environment.
MODELS OF THE MACHINE | SUITABLE PIPE: | STANDARD CONFIGURE: | IN USE INDUSTRIES: | SPECIAL CONFIGURE: |
1. PW25NC Φ25 or smaller | Steel pipe | Pipe bending wheel mould 1 piece | Furniture | Cube pipe bending mould |
2. PW38NC Φ38 or smaller | Stainless steel pipe | Jigging mould 1 piece | Air-conditioning/Cooling | Crimple protection plate |
3. PW50NC Φ50.8 or smaller | Copper pipe | Guiding mould 1 piece | Automobile Parts | Uni-direction ball bar |
4. PW63NC Φ63.5 or smaller | Aluminum pipe | Standard hard core 1 piece | Bicycle | Assistance pushing means |
5. PW75NC Φ76.2 or smaller | Aluminum shaped | Tool box 1 group | Bathing Equipment | Slow speed core drawing means |
6. PW80NC Φ88.9 or smaller | Keep off ruler |
MACHING ITEM MODEL | PW25/ PW25NC | PW38/ PW38NC | PW50/ PW50NC | PW63/ PW63NC | PW75/ PW75NC | PW80/ PW80NC |
Suitable Pipe(carbon) | Φ25×1.6 | Φ38.1×2.0 Φ31.75×3.5 | Φ50.8×3.0 Φ44.45×4.8 | Φ63.5×2.5 Φ57.15×3.3 | Φ76.2×2.0 Φ69.85×3.0 | Φ88.9×2.0 Φ82.55×2.4 |
Maximum Suitable Pipe(copper pipe) Crooked radius 1.5d | Φ25.4×0.8 | Φ31.7×2.2 | Φ44.45×2.2 | Φ57.15×2.2 | Φ69.85×1.9 | Φ82.55×1.8 |
Maximum Wear Leng | 1300 | 1700 | 2210 | 2210 | 2700 | 2700 |
Maximum Crooked Radius | 100 | 200 / 180 | 250 | 250 | 300 / 250 | 300 / 250 |
Maximum Bending Angle | 185° | 185° | 185° | 185° | 185° | 185° |
Return Bend NO. | 2 / 9 | 2 / 9 | 2 / 9 | 2 / 9 | 2 / 9 | 2 / 9 |
Maximum Oil Pressure | 12MPa | 12 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa |
Motor Power | 4KW | 4KW | 5.5KW | 7.5KW | 11KW | 11KW |
Machine Weight | 600/680kg | 750/830kg | 1200/1280kg | 1250/1330kg | 2300/2380kg | 2400/2500kg |
Machine Volume (Length×Width×Height) | 2200×650×1020 | 2500×730×1020 | 3200×850×1030 | 3700×850×1230 | 3760×950×1250 | 3760×950×1250 |
