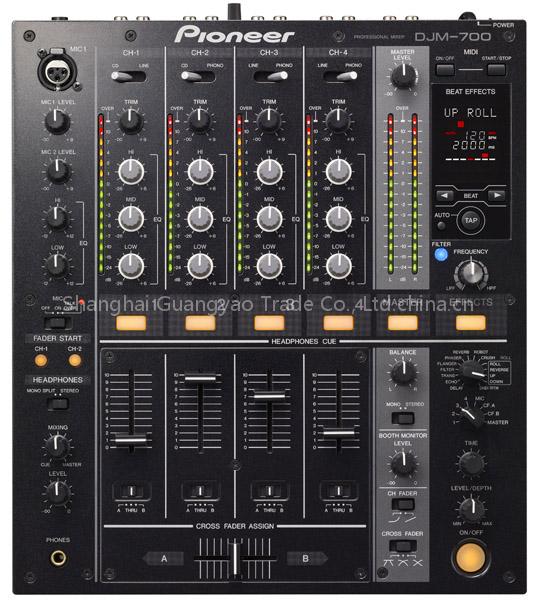

Pioneer DJM 700 Mixer

Standard Mid-Range Professional Digital DJ Mixer

World's first effect frequency filter

Manual filter capabilities

Multiple effects capabilities

Frequency Response 20Hz - 20kHz

Signal-to-Noise Ratio 104dB (LINE)

Total Harmonic Distortion 0.005% or less

Power Requirements AC 120V, 60Hz

Power Consumption 34W

Net Weight 14.5lbs

Dimensions 12.60 (W) x 14.90 (D) x 4.250 (H)

Head Room 19dB

A/D, D/A Converter 24-bit

Sampling Rate 96kHz

Input Terminal CD/LINE x5 (RCA)

PHONO x3 (RCA) PHONO x3 (RCA)

MIC x2 (XLR x1, 1/40 PHONE x1)

Output Terminal MASTER OUTx2 (RCA x1, XLR x1)

BOOTH OUT x1 (RCA)

HEADPHONE MONITOR OUT x1(TOP PANEL 1/40 PHONE x1)

REC OUT x1(RCA)

DIGITAL OUT x1 (COAXIAL)

Other Terminals SEND x1(1/40 PHONE)

RETURN x1(1/40 PHONE)

MIDI OUT x1(5P DIN)

CONTROL OUT (3.5 MINI JACK) x2
