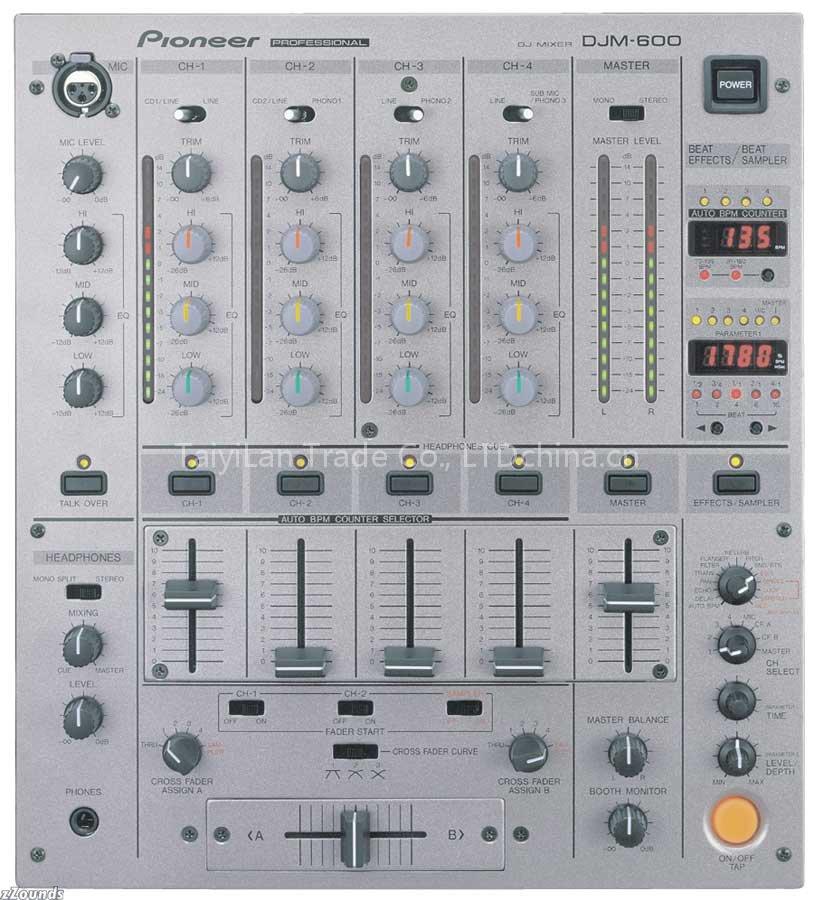

Pioneer DJM-600-S 4 Channel Effects Mixer

Input Terminals · CD / Line 14dBV (200mV) / 22kW · Phono 54dBV (2mV) / 47kW · Main Mic 54dBV (2mV) / 3kW · Sub Mic 60dBV (1mV) / 3kW · Return 14dBV (200mV) / 22kW Output Terminals · Master Out1 (RCA) 0dBV (1V) / 1kW · Master Out2 (XLR) 4dBm (1.23V) / 600W · Rec Out (RCA) 10dBV (1V) / 1kW · Booth Monitor 0dBV (1V) /1kW · Send 14dBV (1V) / 1kW · Phones 0dBV (1V) / 22W Frequency Characteristics · CD / Line / Phono 20Hz to 20kHz · Signal To Noise Ratio · CD / Line 87dB (with effects off) · Phono 77dB · Mic 69dB Total Harmonic Distortion Rate · CD / Line / Phono Below 0.02% · Cross Talk Over 70db Channel Equalizer · Hi 12dB, 26dB (13kHz) · Mid 12dB, 26dB (1kHz) · Low 12dB, 26dB (70Hz) Microphone Equalizer · Hi 12dB, 12dB (10kHz) · Mid 12dB, 12dB (1kHz) · Low 12dB, 12dB (100Hz) · Delay and Echo 1 to 3500mSec · Pan, Trans, Filter and Flanger 10 to 16000mSec · Reverb 1 to 100% · Pitch 0 to ±100% · Power Requirements: AC 220-240V, 50 Hz · Power Consumption: 36 W · Net Weight: 14 lbs 9 oz (6.6 kg) · Dimensions (WxHxD): 320x107x357.4 mm (12-3/8 x 4-3/16 x 14-1/16 inch)
