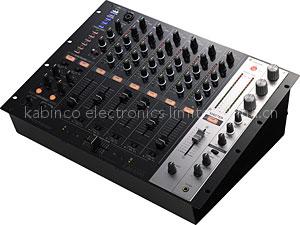

Pioneer DJM-1000

Features: 6 channels 24-bit/96k Hz sampling rate 32-bit/96k Hz Sound processor 10 line, 6 phono, 3 Mic inputs, plus Sound, EFX, and Visual Link Digital inputs XLR, RCA, 1/4", MIDI, and Digital outputs 2 send and return channels Fader start on all channels 3-band EQ on each channel (-26dB to +6dB at each band) 2-band booth EQ facilitates booth monitoring Crossfader assign function enables more flexible assigning of each channel's input to the crossfader Talk over function automatically lowers track Volume during Mic input

Specifications: Frequency Response: 20Hz-20k Hz Total Harmonic Distortion: 0.005% or less Signal-to-Noise Ratio: 95dB (LINE) Power supply

Voltage: AC 120V, 60Hz (North America) Power consumption: 63W Operating temperature: +5°C to +35°C (+41°F to +95°F) Operating humidity: 5% to 85% (no condensation) Sampling rate: 96k Hz A/D, D/A converter: 24-bit Distortion (LINE-MASTER1): 0.005 % Headroom: 19dB Crosstalk (LINE): 88dB S/N ratio (at full scale) LINE: 104dB PHONO: 88dB Mic: 84dB Input level PHONO: -52d Bu (47 kW) Mic, SUBMIC: -52d Bu (3 kW) CD/LINE, LINE: -12d Bu (22 kW) RETURN: -12d Bu (22 kW) Output level MASTER1: +2d Bu (600 W) MASTER2: +2d Bu (10 kW) REC: -8d Bu (10 kW) BOOTH: +2d Bu (600 W) SEND: -12d Bu (10 kW) PHONES: +8.5d Bu (32 W) Channel Equalizer HI: -26dB to +6dB (13 k Hz) MID: -26dB to +6dB (1 k Hz) LOW: -26dB to +6dB (70 Hz) Microphone Equalizer HI: -6dB to +6dB (10 k Hz) LOW: -6dB to +6dB (100 Hz) Booth monitor Equalizer HI: -6dB to +6dB (10 k Hz) LOW: -6dB to +6dB (100 Hz)

Dimensions: 19"W x 7-3/8"H x 14-5/16"D 428 x 187.5 x 363.5mm Net

Weight: 12.1 kg 27 lbs.
