Physical Test of Cement

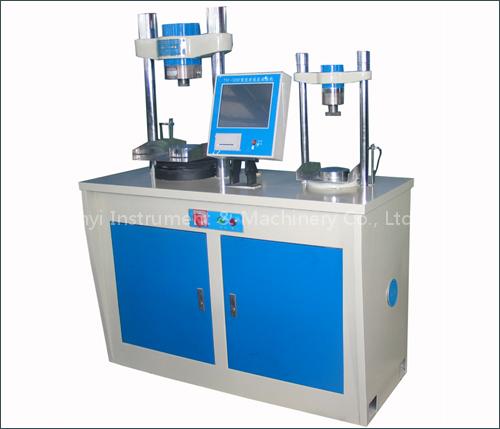

The testing machine is designed for testing the compressive strength of cement mortar. It is featured with reasonable compact in structure, simple in operation, constant loading and touching screen.

It is the necessary equipment in the laboratories of cement plant quality superision institue, construction unit, college and university concerned.Technical DataMax. capacity: Compression test: 300 kNFlexure test: 10 kNRelative error: ±1%Loading rate: Compression test: 0.5-9.0 kN/s Flexure test: 0.02-0.07 kN/sPlaten size: Compression test: Upper platen: Ф48mmLower platen: Ф150mm vertical distance between platens: 240 mm Flexure test: Upper platen : Ф52mmLower platen : Ф110mm vertical distance between platens: 190 mmPower: 0.75 kWPower supply: 380V 50Hz (for main frame) 220V 50Hz (for controller)Dimension: 1250×600×1500 mmNet weight: 535 kg
