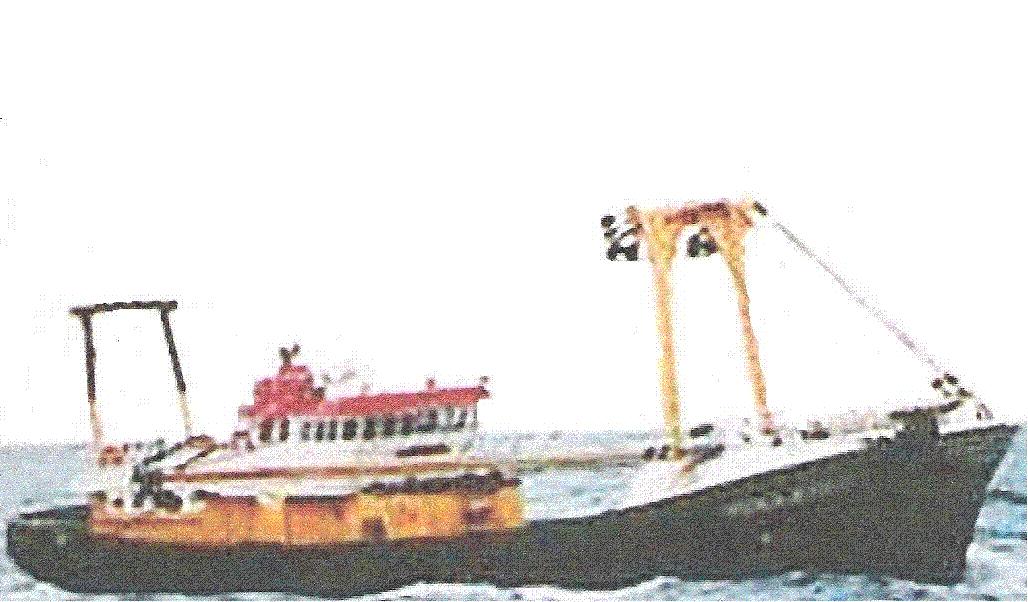

Philippines Fishing Boat With Freezing Plant

Specifications: Type steel motor fishing vessel with freezing facilities and suitable for beam trawling.

Built in 1973 Dimensions 39,19 x 8 x 4,07 meter Gross Tonnage 287 Net tonnage 86 Main engine make Stork, type 9FFHD240, max.1900 HP at 980 RPM, derated to 1200 HP at 830 RPM Engine number 70592, year of building 1985 Auxiliary engine 1 x make DAF, type DT 615 M,120 HP at 1500 RPM 1 x make DAF, type DT 615 M,105 HP at 1500 RPM 2 x gen.

Power diesel sets of 125 kva,220/380 volt - 50 Hz, each set consisting of 1 DAF diesel motor, type DHT 825, engine numbers D51073 and D40897 1 x Stamford generator, type SC 334A, no. W5181/4B 1 x Stamford generator, type UC1274, no.

Y3149/1 Gearbox Make Stork Gears, type 571745, reduction 4,25:1, year of building 1986 Turbo charger make BBC, type VTR-250 Fish hold completely insulated for deep freezing, temperature minus 30 degr. C. Freezing plant 1 complete deep freezing installation with 2 cooling sets with 2 compressors 26,5 Kw at - 38/+37 degr. C.

Make Bock, type FX-16 2 seawater resistant condensers, make Helpman 2 cooling water pump set, type PLK 2 freezing evaporators cap.1 x 5,3 Kw and 1 x 10,8 Kw.

Fish processing 1 x hydraulic driven stainless steel conveyor belt 1 x nylon transport belt 1 x electric fish washer Fuel capacity 160 ton Fresh water capacity 25 ton Generator 220/380 volt 3 phase,24 volt emergency on batteries 1 x power supply generator 70 kVA 1 x power supply generator 50 kVA 1 x winch generator 120 kW 1 x emergency winch generator 70 kW 1 x winch motor 120 kW Propeller 1 x 4-blade propeller, make Van Voorden, diam.2500 mm Nozzle 1 x steel nozzle with stainless steel ring, make Hodi Steering gear hydraulic, make Seffle with double plated rudder Bow thruster 1 x electric driven Fish winch 1 x fish winch make Luyt,8 drums, electric driven and air controlled from wheelhouse Anchor winch 1 x electric anchor winch placed under whaleback Accommodation for 20 crewmembers Miscellaneous In January 1996 the following conversions were made: Fish hold is rebuilt for freezing purposes Two generator sets were supplied, fitted and connected Under the whaleback on starboard side is an extra compartment made for the freezing equipment The net store forward has been rebuilt for 12 crewmembers The main engine has been complete overhauled and derated to 1200 HP The mid ship net store has been rebuilt with extra fuel tanks
