Ph20 LED video wall
Specifications
- Brand
- Shenzhen Haisheng Optoelectronic CO.,LTD
- Origin
- China (Mainland)
Ph20 LED video wall is a LED Modules product. Key specs — Brand: Shenzhen Haisheng Optoelectronic CO.,LTD; Origin: China (Mainland).
Product Description

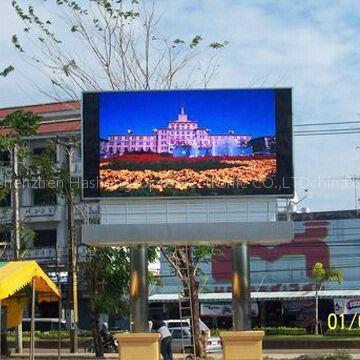

Ph20 LED video wall is one of the most popular models for outdoor advertising nowadays, not only because its reasonable price but also its good image effect and brightness. it always used in a place with large population flow to reach a good advertising effect. Skype: sophia.leds
Model No:HSGD-O-F-P20 | |
Item | Parameter |
Pitch Pixel | 20 MM |
LED Configuration | 2 R,1G,1B |
LED standard | 5mm Lamp |
Module Dimension | 320*160 MM |
Module Resolution | 16*8 Pixel Dots |
Cabinet Dimension | 1280*960 MM |
Cabinet Resolution | 64*48 Pixel Dots |
Cabinet Weight | 50 KGS |
Luminance | 6000 NIT |
View Angle | 110(H),90(V) Degree |
Power Consumption(Average) | 425 W/ SQ.M |
Best View Distance | 20~160 Meters |
MTTF | 5,000 Hours |
Protection Level | Ip 65 |
Pixel Density | 2500 Dots/ SQ.M |
Drive Mode | Static constant current International Sales Manager Sophia MSN Skype: sophia_leds
|
