Pet preform mould is a Moulds product. Key specs — Brand: jingxi mould; Origin: China (Mainland).
Product Description

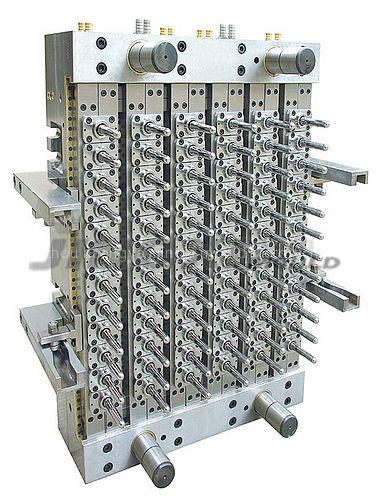

PET Preform mould with valve gate system
Advanced hot runner system with German heating elements
1. Mould base steel: DIN 1.2311 with precision grinding machine with the hardess 32HRC
2. Mould spare parts DIN 1.2344 in D-M-E metric dimension standard;all the moving area was inserted with durable parts which can be interchangeable;
3. Precision temperature controlling and even heating area for hot manifold;
4. Improved valve gate system with interchangeable and durable melt PET material sealing;
5. Cavity and core steel:Stavaxs420 stainless steel,tempered with HRC 552;
6. Screw neck slide inserted with prehardened DIN 1.2316,HRC 38 to HRC 42.
the country of mould'client:Iran
