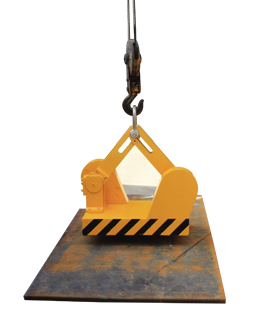

Permanent magnetic lifter
Listing ID#89096
ModelAL serial
CategoryOther Construction Machinery
Other Construction Machinery

Permanent magnetic lifter

Specifications

Brand
XiQingFang
Origin
China
Certifications
CE
MOQ
1set
Packaging
carton or wooden carton
Price Term
FOB
Payment Term
T/T
Supply Ability
500sets/month
Delivery Time
10-15days
Loading Ports
NIngbo
Request Quote
Quick answer

Permanent magnetic lifter is a Other Construction Machinery product. Key specs — Brand: XiQingFang; Origin: China; Certifications: CE; MOQ: 1set.

Product Description

　　This type of lifting magnet can automatically lift sheets, plates, blocks and bars without the need of a worker to operate and no power required. Rotating lift arm activates magnet when lifting steel and releases steel when lowered. Great for remote jobs where power isn't readily or available. Costs much less than that of Electromagnet.

Model Rated lifting strength (kgf) Max. pull-off strength (kgf) L W H A Operation temperature 　　(℃) Dead weight (kg) XQFAL1000 1000 3500 595 435 580 190 ﹤60 190 XQFAL2000 2000 7000 720 440 720 235 280 XQFAL3000 3000 9000 720 530 720 210 370 XQFAL5000 5000 12500 925 630 880 450 730
