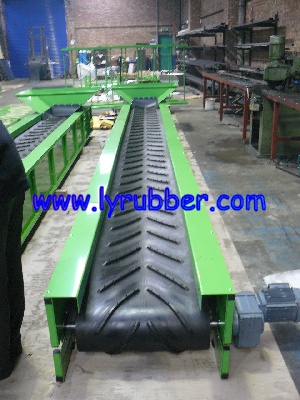

Pattern Conveyor Belt

Suitable for handing bulk materials,slip resistant and big conveying capacity.

Application：Chevron conveyor belts are used to convey wet and/or loose materials or bags up steep inclines. The patterns prevent or reduce slide back and increase the amount of product moved by quick pick-up at the point of loading. They are used in quarries, sandpits, cement works, lime works, mobile crushers and screens, farming and salt mines, etc

Character：1. can carry bulk material at angles of 17~ 18 and bagged material at angles of 30~ 50. 2. Cleat angle and pitch are designed for smooth travel over return idlers 3. Cleats and top cover rubber are mono block molding for strength.

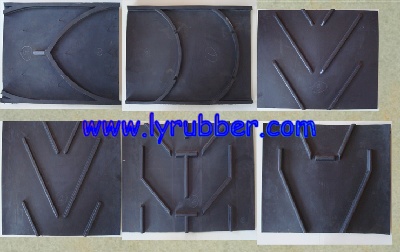

Specification: Open V, Closed-V, L type, H type, Y type, A type and F type, etc. And new patterns can be developed for customers accordingly.
