Listing ID#10220581
ModelKLC-PB
CategoryAir Conditioning Systems
Quick answer

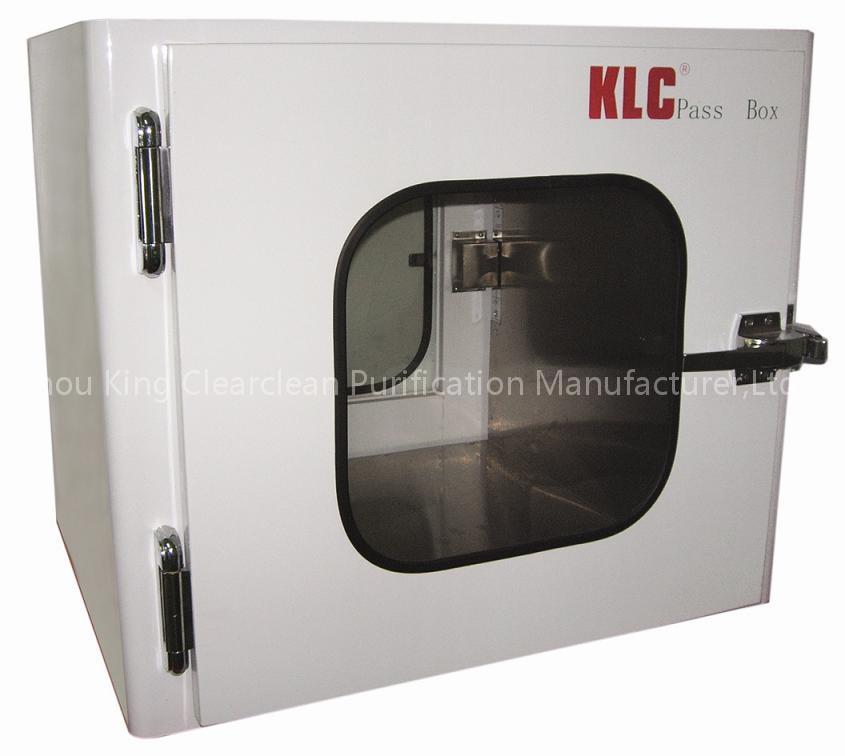

Pass box is a Air Conditioning Systems product. Key specs — Brand: KLC; Origin: China.
Product Description
| Characteristic: | |||
| â–º It is adopted the stainless steel inside, which is flat, neat, wearable. The surface material of pass-box is cold rolled steel or stainless steel. | |||
| â–º Doors in two sides with machinery or electronic interlock device maked two doors can't be in the open state at the same time. | |||
| â–º Pass box with special seal stripe guarantee the airproof. | |||
| The above pass box is a standard type. According to the customer's requirement, we can make different size and different function. For example: | |||
| 1.Electronic interlock pass box with two doors | |||
| 2.Machinery interlock pass box with single door | |||
| 3.Electronic interlock pass sbox with single door | |||
| 4.Moveable pass box | |||
| box with sterilization | |||
| box with ozone sterilization | |||
| box with interphone and so on. | |||
| Technology parameter | |||
| External dimension (L*W*H)(mm) | 685*500*590 | 785*600*690 | 935*750*840 |
| Internal dimension (L*W*H)(mm) | 500*500*500 | 600*600*600 | 750*750*750 |
| Outside material | Cold rolled steelor stainless steel | Cold rolled steelor stainless steel | Cold rolled steelor stainless steel |
| Inside material | Stainless steel | Stainless steel | Stainless steel |
| Material thickness | 1.0/1.2 | 1.0/1.2 | 1.0/1.2 |
| The size forglass window(mm) | 350*350*8 | 395*395*8 | 480*480*8 |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Customized design is available. | |||
