Parking Assistance System for Track

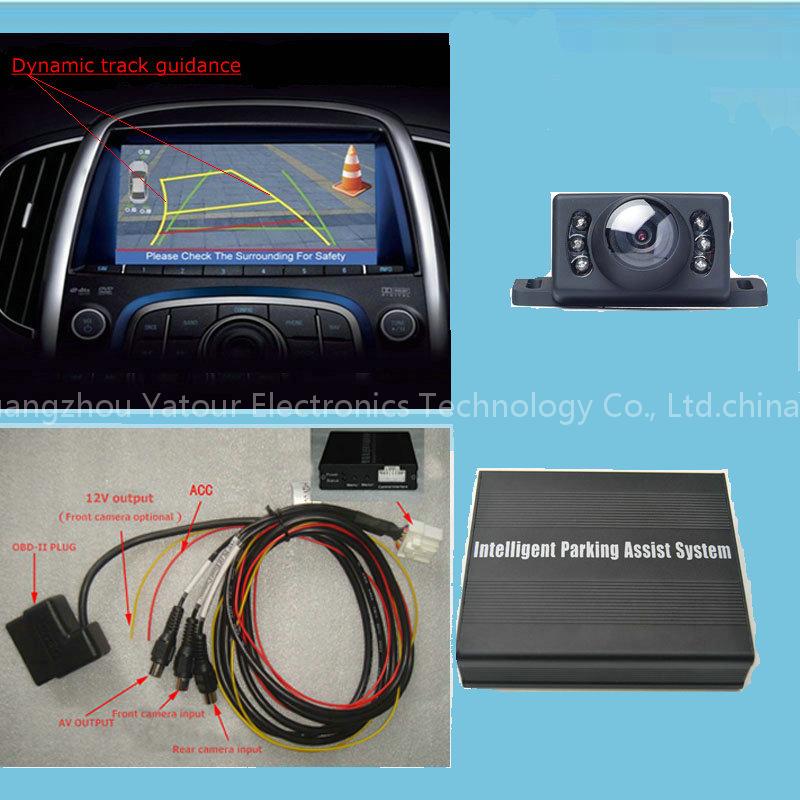

Intelligent Parking Assist System Description: This product is suitable for the original car models which come with standard auto electronic stability control system.

This product works by reading sensor data from control bus which provided by the original vehicle electronic stability control system ,in order to detecting the steer wheel rotation rate, car speed, and the car's lateral acceleration.

By above information, it will work out the reversing motion trajectory planning line, it displayed on the monitor or screen with VSC, ESP, VSA, or DSC logo, when we park the car.

Technical Parameters:  Operating voltage: Power line is +12 V, the other signal line is +5 V;  Operating temperature: -20 - +70;  Video Input: RearView RCA terminal;  Standard: PAL / NTSC;  Range: 1VP-P, negative-sync 0.3VP-P, 75 ohm load  Output: RCA terminal;  Standard: PAL / NTSC;  Range: 1VP-P, negative-sync 0.3VP-P, 75 ohm load Application in the field of car models mentioned below : VW / Audi / Skoda cars types : 09 Audi model A4L cars , all models 08/09 MAGOTAN cars , 08/09 Octavia 1.8 more and above 08/09 Audi A6L model cars , all models 08/09 Sagitar Toyota / Buick types of car 08/09 2.4 the crown car , all Highlander car models with automatic gearbox , models 09 of the new Regal All Model cars 08/09 Reiz car models , Camry all models 08, models all models 240G Deluxe Edition 09 Toyota RAV4 2.0 , All of the above models Camry 08, 240G NAVI navigation Deluxe Edition All Models , , ,
