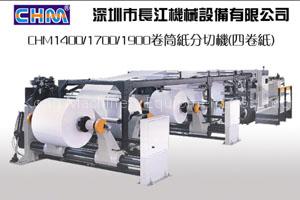

Paper roll sheeter is a Business Services product. Key specs — Brand: CHM; Origin: China.
Product Description
Model: CHM-1400mm/1700mm/1900mm
MAIN SPECIFICATIONS
Reference weight of cutting paper: 60-550GSM
Cutting accurancy: 0.5mm tolerance allowed
Max. Cutting speed: 300sheets/min
Max. Cutting meter speed: 300m/min
Cutting lenght range: 450-1450mm
Max. Diameter of reel: 1800mm
Paper stack height: 1300mm
Max. Width of cutting paper: 1400mm/1700/1900mm
MAIN WORK SECTIONS
Cutting section
1. Computer operation interface, easy to operate.
2. High precision special alloy steel knife
3. Cutting accuracy is at 0.5 tolerance allowed
Paper feeding section
1. Double limbs oil pressure shaftless paper rack
2. Auto tension control system
3. Auto paper edge guiding system
Electric control section
1. PLC control system
2. AC servo driving motor
3. High precision encoder
4. High precision cutting.
5. Long endurance
Slitting knife
1. Three sets of slitting knife
2. Used for trimming and middle slitting
Paper delivering section
1. The number of overlapping sheets can be adjusted by this section.
2. The single sheet outlet can be adjusted.
