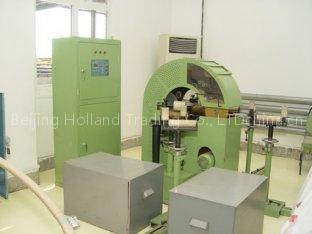

Paper board electrostatic ring wrapping machine

A: Usage: To make insulation board to a cylinder or arc shape. B: Equipment components: Upper roller, lower roller, supporter, pedestal, drive system, electrical system.

C: Processing procedure: 1.Switch on the air-switch in the electric-cabinet, the work LED light. operation: push the “up” button to make the upper roller goes up till the insulation board can be put into the gap between the upper roller and lower rollers easily. operation: push the “down” button to make the upper roller goes down till the board is properly curved. the “forward” button to make the curved insulation board goes forward via the lower rollers clockwise rotation. the “back” button to make the curved insulation board goes back via the lower rollers anticlockwise rotation.  the “stop” button to make the curved insulation board stop moving.

7.According to your technology, repeat the above procedures (2-6) till get the qualified cylinder or arc shape.

D: Specifications: Roller diameter φ140mm Roller length 3500mm Thickness of pressboard 1-8mm Speed of roller 11.57rpm Pressboard moving speed 5m/min Elevating speed of upper roller 46mm/min Elevating distance of upper roller 100mm Main drive motor 2.2KW Elevating motor 1.1KW Dimensions 4500(L)´1000(W)´1300(H)mm Weight 1700Kg
