Paper board batten shaping machine
Specifications
- Brand
- 1997
- Origin
- China (Mainland)
- Price Term
- FOB
Paper board batten shaping machine is a Metals & Alloys product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.
Product Description

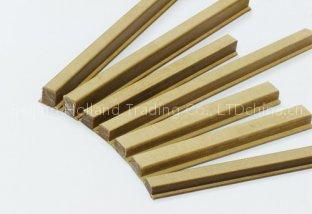

To slit batten (cardboard) or process “Tâ€, trapeze and rectangular type etc. batten for transformer’s insulators.
B: Equipment components:
Worktable, support and transmission device, feeding mechanism, milling and chamfering devices, dust collection device (optional), electrical control system
C: Processing procedure:
1. Slitting: to cut batten (cardboard) (Max. Width 120mm) lengthwise into strips (Max. 5 strips) with saw bits (Max. 6 saw bits).
2. Shaping without bottom surface: feed---mill and chamfer left surface---mill and chamfer right surface---mill and chamfer top surface---finished product.
3. Shaping with bottom surface: feed---mill and chamfer bottom surface ---mill and chamfer left surface--- mill and chamfer right surface--- mill and chamfer top surface---finished product.
D: Specifications:
Diameter of tool spindle | φ40mm | |
Max. Width of feeding batten (cardboard) | 120mm | |
Slit width of batten (cardboard) | 5-30mm | |
Thickness of batten (cardboard) | “T†and trapeze type batten | 5-15mm |
Rectangular type batten | 5-25mm | |
Length of batten (cardboard) | 600-3500mm | |
Speed of tool spindle | 5000-6000r/min | |
Feed speed of batten (cardboard) | 6-24m/min (stepless adjustment) | |
Dimensions | 4000(L)´1350(W)´1550(H)mm | |
Motor output power | Front-lower tool spindle motor | 3kW |
Elevating motor | 0.75kW | |
Feeding motor | 1.5kW | |
Upper horizontal spindle motor | 4kW | |
Lower horizontal spindle motor | 4kW | |
Left vertical tool spindle motor | 3.0kW | |
Right vertical tool spindle motor | 3.0kW | |
Dust collection motor | 5.5kW | |
