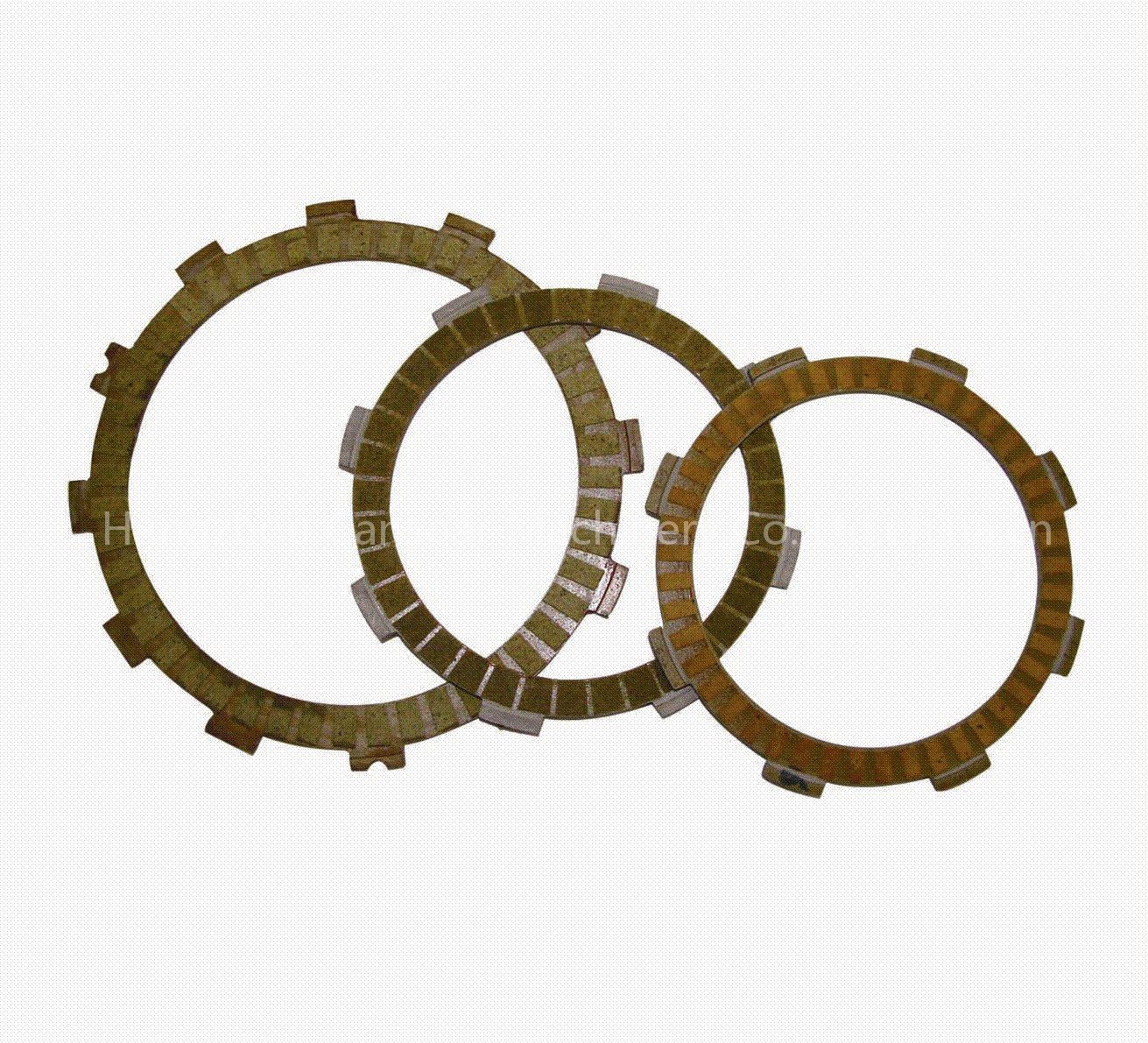

Paper based clutch disc for Motorcycle

Paper based friction material have strong abrasion resistance, high friction coefficient and temperature resistance, offering smooth and stable clutching transmission ,suitable for motorcycles, cars, construction machinery, mineral machinery, vessel machinery, etc.

Technical data:

1. Friction Coefficient: μd=0.13-0.18, μS=0.20-0.26

Rate: ≤5.0×10-8cm3/J

3. Specific Pressure in Applicatiion: ≤6Mpa

4. Linear Velocity: ≤40m/s

5. Oil Temperature in Operation: ≤120

Features:
1) High friction coefficient
2) Stable performance
3) We can produce the friction plate according to your samples
