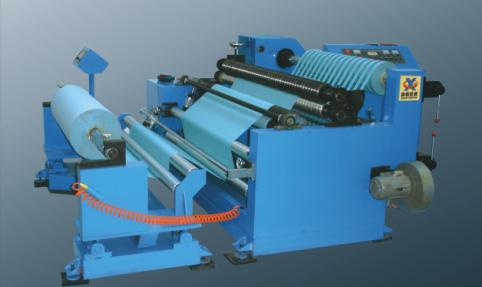

Paper Slitting Machine is a Business Services product. Key specs — Origin: China (Mainland).
Product Description
Application: The machine mainly use for slitting big roller paper and other materials basic on big and wide. Characteristics:This machine employs round knife cutting method and is mainly used in the cutting of paper,self-adhesive compound materials and non-woven has high accuracy, simple operation and is economical.Main Technical Parameter:Machine type GXFQ1600A
Max.Unwind diameter 800mm
Max.Cyliuder width 1600mm
Slitting width range 20-1600mm
Thickness of slitting 0.05-0.8mm
Max.Rewind diameter 400mm
Machine speed 180m/min
Edge position error ≤±0.5mm
Edge of control Photoelectric correction system
