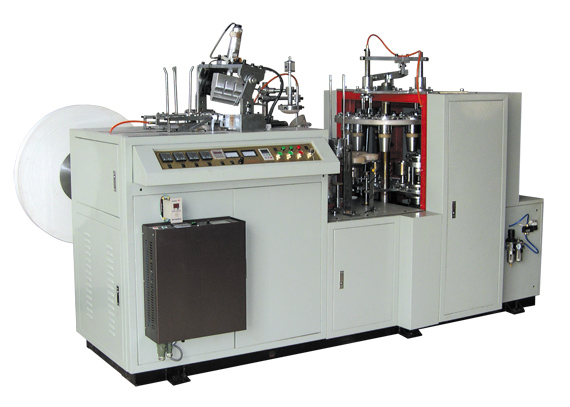

Paper Cup Machine

Brief Introduce : WY-WB type double sides PE coated paper cup machine is a development equipment on WY-WA single side PE coated paper cup machine.

In this type paper cup machine,we add a ultrasonic system to sealing the paper cup body,the ultrasonic system resolve the problem that double sides PE coated paper can not be sealing by heater,the reason is that when a heater is adopted on the outside suface the PE film will be burnt and become yellow or blackish and make the cups shape in ugly.

Use WY-WB Ultrasonic Paper Cup Machine,you can produce both double sides PE coated paper cups and single side PE coated paper cups only exchanging the raw material.

Main Technical Data: • Paper Cup Sizes: 3,4,5,6.5,8,9,10.5,12OZ or other sizes • Row material: Single side(one side) or Double Sides PE(polyethylene) film coated paper • Suitable paper weight: 170gsm--420 gsm (Recommend 190--320 gsm) • Speed of making paper cups: 40--50 pcs per minute • Limit of temperature control: 0--400 Centigrade • Total power: 5.5KW • Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed • Whole machine weight: 1500 kg • Appearance size(L x W x H): 2600 x 1050x 1550 mm • Note:We can make the paper cup machine suitable for your requirement.

Paper cup bottom diameter (outside) , Min 30mm---Max 78 mm Paper cup top diameter (inside) , Min 45mm---Max125mm Paper cup height , Min 32mm ---Max 130 mm the top curling diameter, from 2.4mm to 5mm, this is decided by the paper weight(the paper thickness), Finished Products' Usage: Double sides PE coated paper cups are widely used for all kinds of drinks: hot drinks(hot coffee cups, hot water cups), cold drinks paper cups(ice-cream cups),all kinds of beverage, and some other special
