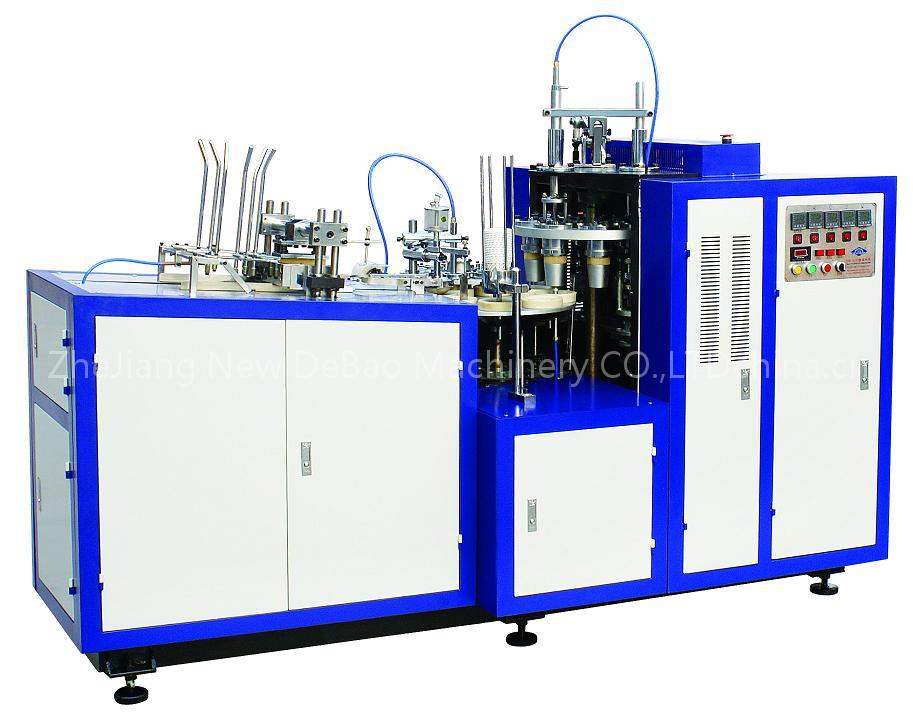

Paper Cup Forming Machine

The paper cup forming machine is an automatic equipment with multi-stations, cam and chain transmission. This paper cup forming machine can finish the whole operations including paper feeding, oil casting, bottom punching, heating, knurling, edge curling and cups removing.

This paper cup forming machine is an ideal machine for manufacturing teacup, advertisement cup, ice cream cup, coffee cup, etc.

Type DB-L12 DB-2L12,DB-C18 DB-2C18 DB-C22 DB-2C22 Capacity 45-55pcs/ min 40-50pcs/ min 30-40pcs/ min Required paper thickness 150-250gsm one-side PE coated paper 150-380gsm two-side PE coated paper 150-250gsm one-side PE coated paper 150-380gsm two-side PE coated paper 150-250gsm one-side PE coated paper 150-380gsm two-side PE coated paper Paper cup specification (A)ф50-90mm,(B) 45-100mm, (C)ф35-75mm,(D) 4.5-10mm.

(Aф)60-128mm,(B) 45-140mm, (C)ф50-97mm,(D) 4.5-10mm. (A)ф60-128mm,(B) 45-180mm, (C)ф50-97mm,(D) 4.5-10mm. Required air supply Working Pressure: 0.4-0.6Mpa Working Gas: 0.5m3 /minute Total power 220V 50Hz 3.8kW or 380 V 50 Hz 3.8kW (variable-frequency control) Weight 1300kg 1550kg 1600kg Dimension (L×W×H) 2450×1200×1750mm 2450×1200×1800mm 2700×1300×2000mm
