Paper Cup Forming Machine
Specifications
- Origin
- zhejiang
- Price Term
- FOB
Paper Cup Forming Machine is a Furniture Making Machines product. Key specs — Origin: zhejiang; Price Term: FOB.
Product Description

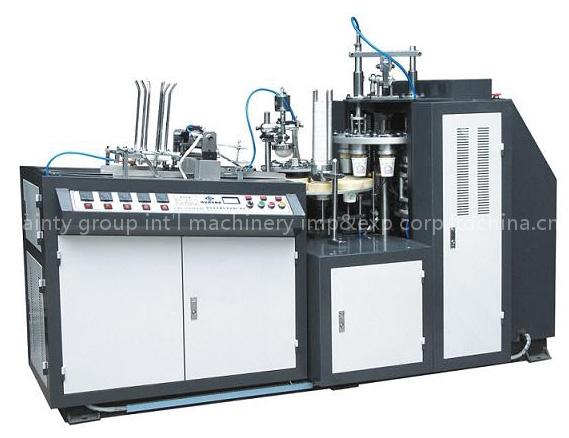

DB-C16 Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and some beverage. If you want to make two-side (double) PE coated paper cups, we recommend you to use DB-2C16, DB-2C18 or DB-2C22 ultrasonic paper cup forming machine.
FEATURE
1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %.
2) The shape of the head is oblate, which can seal the cups easily. It is much better than that is cylinder.
3) The machine can send the bottom paper to the cup automatically and adjust itself because of a spring.
THE MAIN TECHNICAL PARAMETERS
Model | DB-C16 | DB-2C16 | DB-C18 | DB-2C18 | DB-C22 | DB-2C22 |
Production Capacity | 45-55pcs/ min | 40-50pcs/ min | 30-40pcs/ min | |||
Required Paper | 150-250gsm one-side PE coated paper | 150-380gsm | 150-250gsm | 150-380gsm | 150-250gsm | 150-380gsm |
Container Specification | (A)50-90mm,(B) 45-100mm, | (A)60-128mm,(B) 45-140mm, | (A)60-128mm,(B) 45-180mm, | |||
Required Air Supply (Two-side PE) | Working Pressure: 0.4-0.6Mpa Working Gas: 0.5m3 /minute | |||||
Total Power | 220V 50Hz 3.8kW or 380 V 50 Hz 3.8kW (variable-frequency control) | |||||
Weight | 1300kg | 1550kg | 1600kg | |||
Overall Dimensions (L×W×H) | 2450×1200×1750mm | 2450×1200×1800mm | 2700×1300×2000mm | |||
