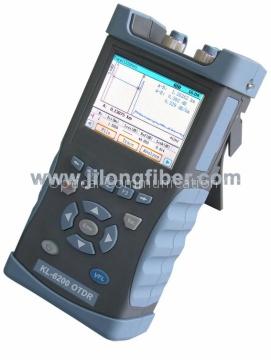

Palm OTDR

MODULE

3528

wavelength

1310nm/1550nm±20nm

Applicable Fiber

Single-mode

Dynamic Range

28/26dB

Distance Measurement Accuracy

±(1m + sample space + 0.003% * measurement distance)

Event Dead Zone

≤1.6m

Sampling Resolution

0.25, 0.5, 1, 2, 4, 8, 16m

Distance Range

4, 8, 16, 32, 64, 128, 256km

Pulse width

10, 30, 80, 160, 320, 640, 1280, 5120, 10240ns

Loss threshold

0.01dB

Sampling points

65534

Linearity

0.05dB/dB

Memory capacity

≥800 Traces

IOR setting

1.00000∼2.00000

Display

Color LCD (touch screen)

Interface

USB, Min-USB

VFL

650nm±10nm, 2mW(typical); CW/1Hz

Language

English

Optical Connector

FC/UPC (universal connector)

Power Supply

DC:15V∼20V(3A), (AC adapter 100∼240V,50/60Hz,1.5A),Built-in Lithium battery:4400mAh,7.4V,operating time≥10 hours3

Dimensions

210mm*100mm*60mm

Weight

about 1kg

NO.

Name

quantity

1

Power line

1

2

AC/DC adapter

1

3

Trace analyzing software,User manual (CD)

1

4

Hard Carrying case

1
