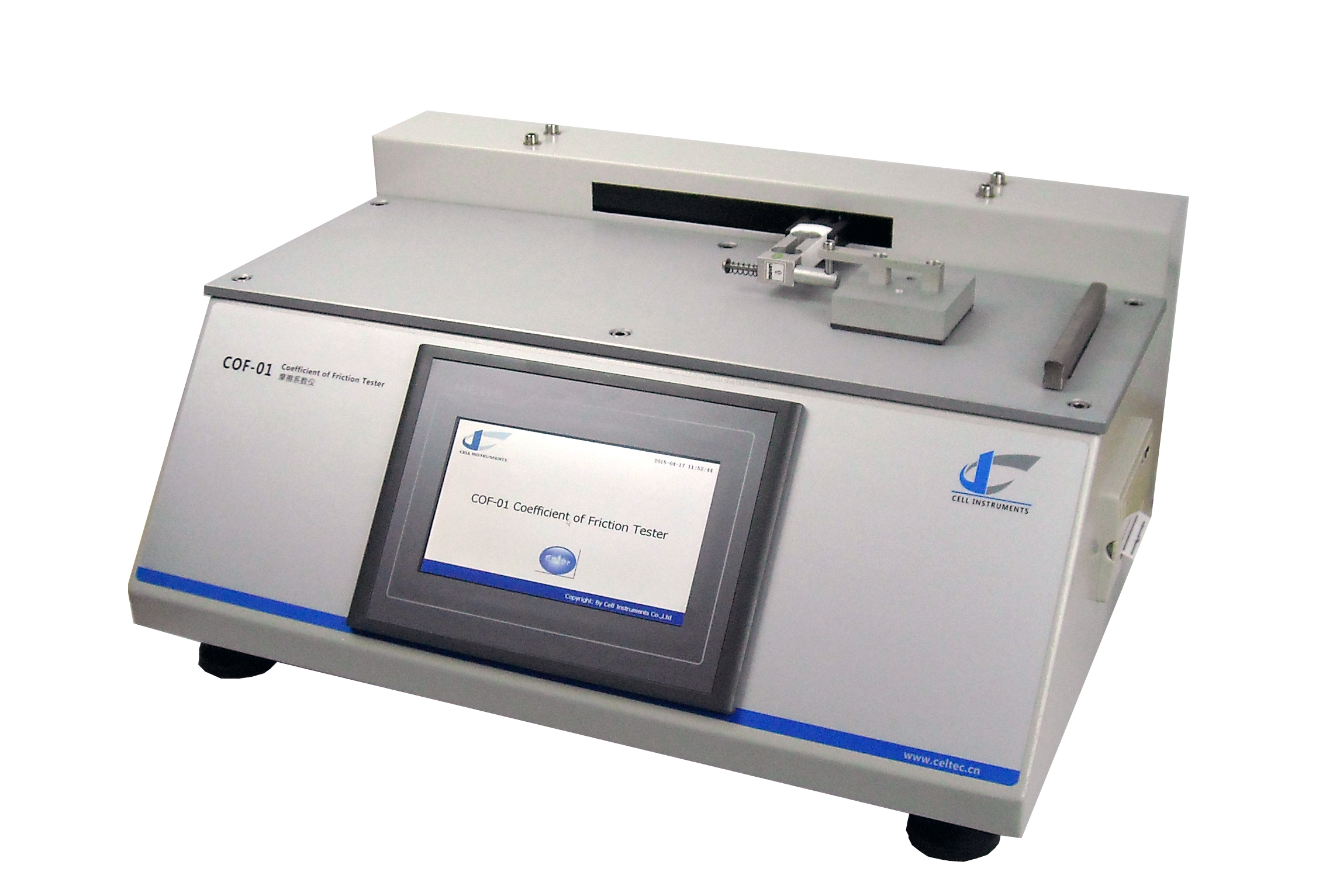

Package Coefficient of Friction Tester
Specifications
- Brand
- Cell
- Origin
- China
- MOQ
- 1
- Packaging
- plywood
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
Package Coefficient of Friction Tester is a Testing Instrument & Equipment product. Key specs — Brand: Cell; Origin: China; MOQ: 1; Packaging: plywood.
Product Description
The two samples are placed together. A long strip sample is fixed on the flat surface and another squared sample is applied force by a sled. The friction force is measured when they slip against each other. Package Coefficient of Friction Tester Features 1. PLC control and touch screen operation 2. Real time display of test data, results and curves 3.
Both the static and kinetic coefficient of friction can be measured 4. In accordance with multiple international standards 5. Test results calculation, analysis and curve superposition 6. RS232 output and professional software 7. Microprint of easy printing of test result
Package Coefficient of Friction Tester technical Specification Load Cell 5N Accuracy 0.5 F.S. Stroke Max 150mm Sled 200 g (Customization for other weight) Test Speed 100mm/min (ISO), 150mm/min(ASTM) (any speed can be set) Power AC 220V 50Hz ( can be changed to local requirement) Dimensions 540mm(L)*380mm(W)*240mm(H)
Standards ASTM D1894, ISO 8295, TAPPI T816, GB 10006
