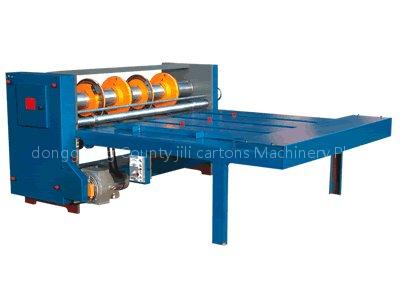

PYQ series of tangent-pressure indentation

Purposes and characteristics Standing for the overall quality of casting high-intensity A 3-axis helical gears smooth functioning of the structure, all of the pressure, low noise. Single-action electromagnetic clutch sensitive and reliable. Operation of high-pressure reasonable arrangement to open the angle. Security protection system reliability.

Note: (equipment can be color-on-demand) Main technical parameters

Model PYQ0401 PYQ0203C ML1040 ML1100 ML1300 ML1400 ML1500 ML1600 Frame size of 710 × 510 mm 930 × 660 mm 1040 × 720 mm 1100 × 800 mm 1300 × 920 mm 1400 × 1000 mm 1500 × 1050 mm 1600 × 150 mm The pace of work 25 20 ± 3 20 ± 3 20 ± 2 20 ± 2 20 ± 2 18 ± 2 18 ± 2 The indentation tangent of <15 mm <25mm <30mm 32mm 40mm 40mm 50mm 55mm Electric Power 2.2 kw 3kw 4kw 4kw 5.5kw 5.5kw 7.5kw 7.5kw Machine Weight 140 kg 3200kg 4000kg 4500kg 5600kg 6500kg 7500kg 8500kg Appearance size 1300 × 1300 × 1700mm 1780 × 1590 × 1450mm 1800 × 1900 × 1480mm 1800 × 1900 × 1480mm 1800 × 2120 × 1650mm 1800 × 2220 × 1650mm 1800 × 2320 × 1700mm 1800 × 2420 × 1750mm
