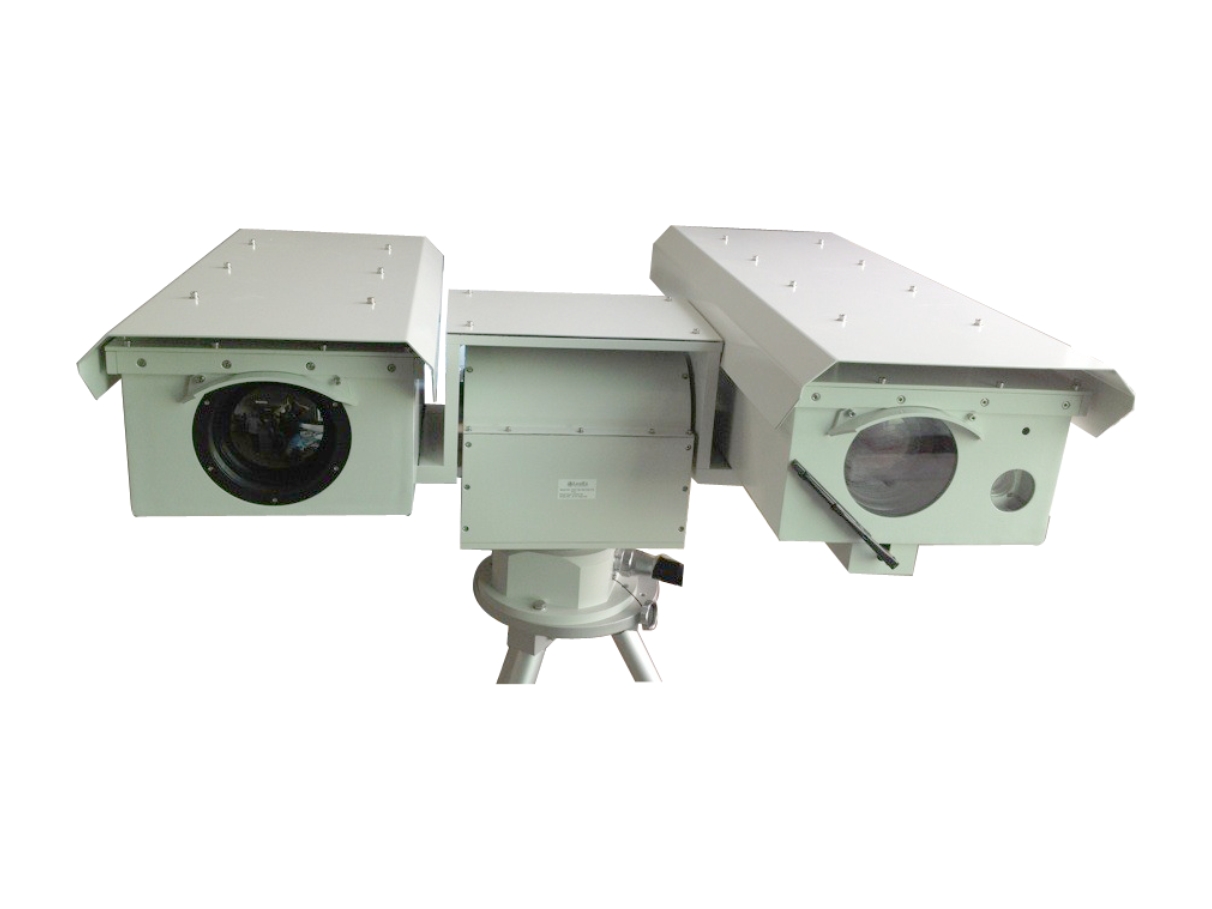

PVP-TM Thermal PTZ Camera

LeadEx PVP-TM is a dual camera system with pan-tilt pedestal. It includes: Un-cooled thermal imager (TI) camera with motorized focus thermal lens or x3 (33mm~100mm) or x4 (44mm~176mm) continuous zoom thermal lens. Sony x36 IOP camera module or 1/2-inch CCD Color/BW fog penetrate camera with 320/ 400/506/ 750/ 1500mm continuous zoom day night lens.

Built-in power supply module (PSM) and central processing module (CPM) The TI camera and thermal lens work at far-infra-red frequency ~14μm (3~5μm for optional), and could show the image of tiny temperature differences. Several image modes could be selected, such as white hot, black hot, fusion, rainbow and other pseudo color modes.

Compared with other thermal camera, JM612-TM has the unique feature called DDE (Digital Detail Enhancement), which could offer more detailed image clarity. The Vanadium Oxide (VOX) is the material used in Focal Plane Array (FPA), which is immune from the sunshine. Meanwhile, the thermal camera part could be on/off separately.

So, the system has a relatively longer working life. The CCD part works at visible light and near-infra-red frequency. There are two options: Sony IOP module or LeadEx HQ2 camera with big zoom lens system.

All the system has an excellent night view performances, and the HQ2 fog penetrate type is capable to see through thin smog or fog in daytime for long range surveillance applications.So, the system is a best combination of thermal imager and CCD day/night camera, and is capable to work with an excellent optical performance at both daytime and night.

Due to the above excellent performances, the dual camera system is ideal for applications requiring long distance surveillance under harsh environment and all-weather conditions. It always works fine at both daytime and night, even in a rainy/snowing/smog/foggy/dusty day. Intruders hiding in the jungle/grass at night could also be easily detected.

Typical applications for PVP-TM PTZ camera Series include search and rescue, national defense, law enforcement, frontier defense, military, maritime affairs, aviation, nuclear power plants and traffic etc.

Features Integrated with day/night camera, thermal, lens, CPM and variable speed pan/tilt motor and enclosure Unique DIP switching design makes system setup easy Unique Firmware Online Upgrade (FOU) function provide convenience for customized requirement and system maintenance Unique micro-step function design to ensure the precision of surveying long distance target Unique CCD window from filmed and toughened glass Auto/Manual calibration insures precise system operation Built in temperature control and thermal part separate remote ON/OFF prolong the using life Optional auto-lock pan/tilt for mobile surveillance applicants Rugged designed all metal body Water tight design, IP66 housing Wide range optional modules or functions available IP module Video analytics module Optional DMD System Gyro stabilization system GPS interface and/or radar and digital compass interface（NM0183 protocol) Alarm box and water spray system HD High Definition CCD camera Frame Noise Reduction (FNR) Long distance laser
