PVC door and window machine
Specifications
- Brand
- tianma
- Origin
- china
- Price Term
- FOB
PVC door and window machine is a Electronics & Instrument Enclosures product. Key specs — Brand: tianma; Origin: china; Price Term: FOB.
Product Description

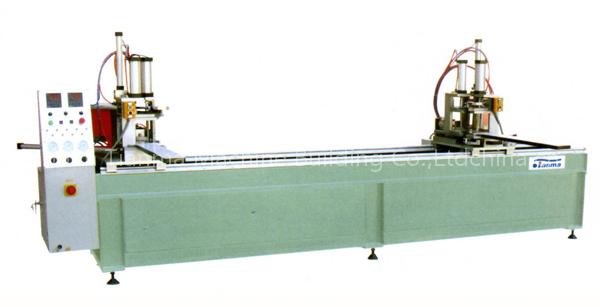

Two-head Welding Machine for Colored PVC
Two-head Welding Machine for Colored PVC Structure feature: This machine is made up of two heads, frame, electric controller box, profile-holding frame etc. The left head can move 20mm with level rail by the system. Every head has its separate location structure, pressing structure, heating structure, and head box.
Function explanation: This machine is the necessary equipment for processing chromatic PVC profile, Two-head Welding Machine for Colored PVC can complete the profile welding corner cleaning together alone for making chromatic PVC win-door. Two-head Welding Machine for Colored PVC uses PLC control, pneumatic drive.
All motion pairs adopt linear bearing guide system.
This machine features advanced technique, high precision, reliable performance, and easy operation etc. -------------------------------------------------------------------------------- Working Air Pressure 0.6~0.8Mpa Input Voltage 220V 50HZ Air Consumption 200L/min Input Power 3.0Kw Welded Range 400×400~3500×3500mm Welded profile height 20~150mm Welded profile width 120mm(max) Overall Dimension 4400×1300×1500mm Weight 1000Kg
