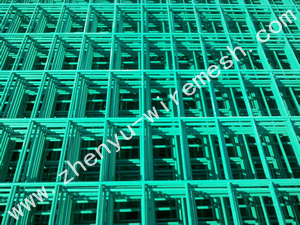

PVC coated Welded Mesh Panel

PVC coated Welded Mesh Panel PVC coated Welded Mesh Panels can be galvanized then PVC coated or without galvanized then PVC coated. The most popular color is RAL6005, RAL6009, RAL9017.

Applications: PVC coated Welded mesh panels are utilized as guards in buildings and factories, as animal enclosure and fence in agriculture; it is also used in horticulture industry as tree guards, plant protection. Please specify the following when ordering our panels or gratings: 1: Center to center distance of the panel; 2. Panel width; 3.Panel length; 4.

Wire Diameter before PVC coated.

Some Standard Welded Wire Mesh Panels Sizes: 1.5mm Wire Diameter, 1/2" X 1/2" Mesh Opening; 2mm Wire Diameter, 1" X 1" Mesh Opening; 3mm Wire Diameter, 1" X 1" Mesh Opening; 3mm Wire Diameter, 1-1/4" X 1-1/4" Mesh Opening; 4mm Wire Diameter, 1-1/2" X 1-1/2" Mesh Opening; 2mm Wire Diameter, 2" X 2" Mesh Opening; 3mm Wire Diameter, 2" X 2" Mesh Opening; 4mm Wire Diameter, 2" X 2" Mesh Opening; 5mm Wire Diameter, 2" X 2" Mesh Opening; 6mm Wire Diameter, 4" X 2" Mesh Opening; Special sizes can be custom made.
