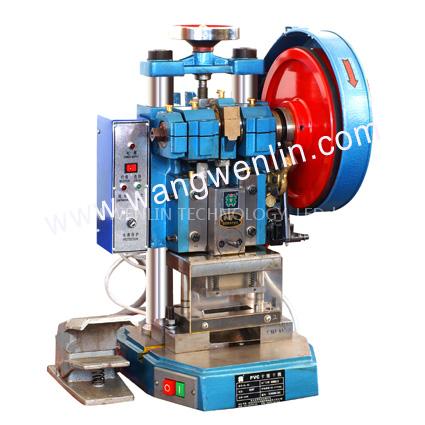

PVC card electric driven punching machine

Product introduction:WL-D5-1 Electric driven punching machine adopts the major driving manner is that the electromotor drives the fly wheel ,through the function of clutch to punch the usepremium materials and highly precise devices to produce this kind of has the charactors of good rigidity,high precision, refined structure,top quality,stable,performance and safe and convinent operation.

The speed is fast and the power is strong,the edge of the cards is smoothly machineis desgined with precise automatic punchinglocation holes. It’s the indipensable device for punching PVC can change the mold according to your demandsFeatures : 1. Our mould is good rigidity,high precision2. Precise automatic punching location holes. 3.

Structure is reasonable ,we can make non-standard mould according to customers request.Specification:WL-D5-1Electric driven punching machinePunching size:International credit cards standard size 85.7*54mm Feeding size:105 mm*297 mmPunching thickness:0.3 mm-1.2mmPunching method:Electric driven Punching action:singlePower:220VPower supply:220V　AC 50HZWorking power:370WProduction speed:1500cards/hourOutline dimension:640 mm×450mm ×700 mmGross weight:110kg
