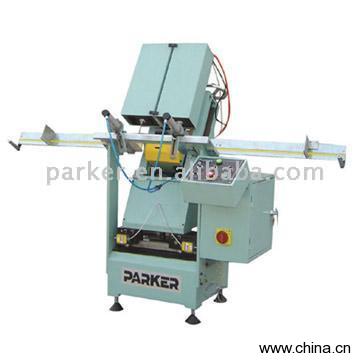

PVC Profile Auto Water-Slot Routing Machine

Model No.:SCX02-3*60 Product Origin:China Brand Name:Parker Price Terms: Payment Terms: Certification: Description:Product Name: PVC Profile Auto Water-Slot Routing MachineModel Number: SCX02-3*60Place of Origin: ChinaTechnical parameters: 1) Input power source (single-phase): 220V, 50Hz 2) Total power: 1.14kW 3) Working pressure: 0.4-0.8MPa 4) Air consumption: 95L/min 5) Machine head quantity: 3 6) Machine head electromotor (power): 0.38kW 7) Machine head electromotor (revolution): 25,000rpm8) Max. milling depth: 30mm 9) Milling length: 60mm 10) Diameter of milling cutter: Φ5mm 11) Dimensions: 2,100 x 860 x 1,500mm12) Weight: 210kgThis machine mainly consists of machine head, hand driven lift mechanism, profile-holding worktable, machine framework, and electric chest.

The whole machine isnormally equipped with three machine heads: right machine head, middle machine head, and right machine head. According to different requirements, we can select different allocations such asallocations of left machine head, middle head, low machine head), and allocation(middle machine head, right machine head, and low head machine).

All the workingcombination of every machine heads can be completed through the select switchon the electric chest. This machine uses module structure. During running, all the machine heads can besingle work, or be selected interlock work. It is free to select, easy to is mainly used for processing water slots on PVC profiles.
