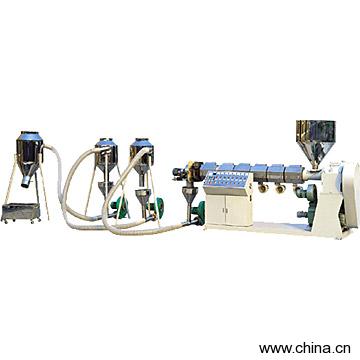

PVC Plastic Pelletizing Machine
Specifications
- Origin
- China (Mainland)
PVC Plastic Pelletizing Machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China (Mainland).
Product Description
Model No.:HSJ-120 Product Origin:China Brand Name:HAIGANG Price Terms:FOB Payment Terms: Certification: Description:We can supply several models of PVC plastic pelletizing machines.
It is mainly applicable for the processing and pelletizing of such raw materials as PVC cable material and transparency tube material by heating and extruding those mixed powders into particles. Our machine is really ideal processing mechanical equipment for PVC injection molding machine or extrusion molding machine.
Main technical parameters: 1) Screw diameter: Φ65mm, Φ90mm, Φ120mm 2) L/D ratio: 1:25-1:303) Rotational speed of the screw: 25-70rpm4) Driving power: 15kW, 22kW, 45kW 5) Production rate: 50-80kg/h, 100-150kg/h, 150-250kg/h6) Overall size (L x W x H): 3,300 x 100 x 1,650mm
