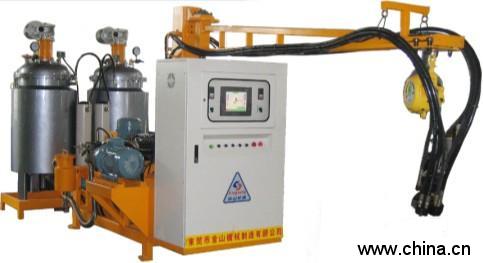

PU high pressure foam equipment

Product Application:

This machine is used for pouring car seat cushion,

Steering wheel,pillow,bumper,instrument panel,shield,

office chair,armrest,refrigerator,foam toys,

thermo-keeping product,furniture,ornament matieral etc.1. The main performance of this machine has reached the advanced level of same line of imported equipment, and with features such as full automation, reliable performance, convenient operation and maintenance.

2. The auto serve motor drive system equipped with LCD computer control automatically the pouring process to meet the shape required by customer.

Main parameters

Structure characters

Pump:

Employs Rexroth(German) variable pump with high pressure, precise transmission and digital display unit, also equipped with cooling and material temperature auto control allowance of work pressure is below 300bar.Safety and high durability.

Mixing Head:

Employs DUT(Korea) mixing head.Automatic three-process switching (pouring, backflow and cleaning ), no process in advance or delay, the pouring head can move pneumatically to carry out cleaning process automatically after pouring. Also equipped with auto stop-material control system.

Control system:

Employs Siemens PLC systems and E-view temperature, pressure and pouring volume all can be displayed and controled on the interface.
