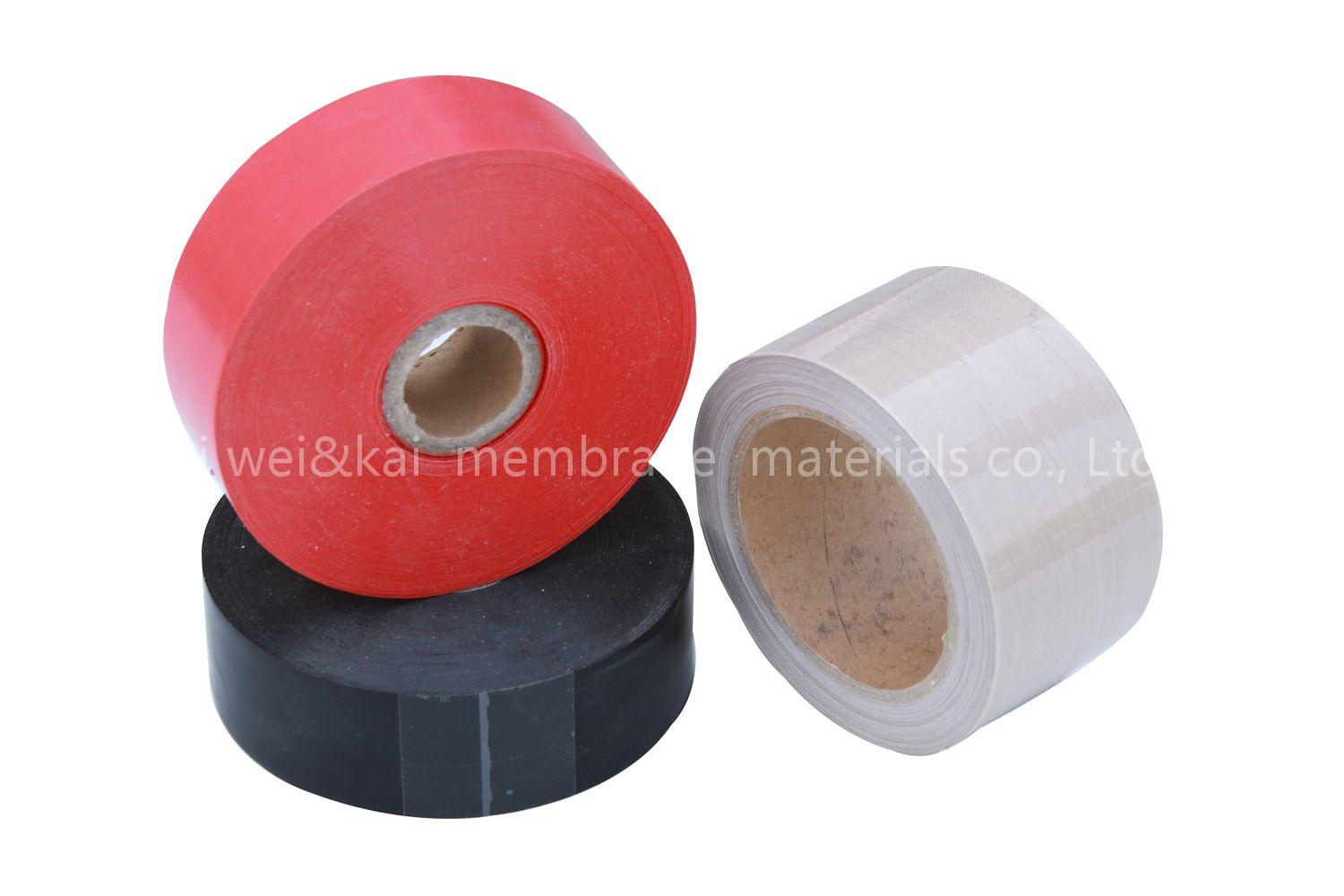

PTFE coated tape
Specifications
- Brand
- wei&kai
- Origin
- china
- Price Term
- FOB
PTFE coated tape is a Adhesives & Sealants product. Key specs — Brand: wei&kai; Origin: china; Price Term: FOB.
Product Description
PTFE-Film Adhesive Tapes
PTFE slick-surface extruded film with pressure-sensitive silicone adhesive and smooth, lay-flat backing. For use on high temperature coils, capacitors and wire harnesses up to 180° C (356° F).PTFE films provide a conformable release surface and exhibit a remarkably low coefficient of friction and non-stick films have high temperature resistance and are virtually unaffected by all chemicals. At elevated temperatures, PTFE film still retains excellent tensile strength. Service temperatures range from -100°F to +500°F (-73°F to +260°C).Film applications include high temperature coil and capacitor wrapping, composite bonding, masking, and conveyor release linings.
Technical Parameters:
| TYPICAL PROPERTIES | ||||||
| TAP-G Series | Backing Thickness (mm) | Adhesive Thickness (mm) | Total Thickness (mm) | Adhesive Strength (N/cm) | Tensile Strength (N/cm) | Temperature Resistance (°C) |
| TAP-G08 | 0.08 | 0.05 | 0.13 | 5.3 | 180.2 | -73~260 |
| TAP-G11 | 0.11 | 0.05 | 0.16 | 5.6 | 210.5 | -73~260 |
| TAP-G13 | 0.13 | 0.05 | 0.18 | 6.2 | 230.3 | -73~260 |
| TAP-G15 | 0.15 | 0.05 | 0.20 | 6.3 | 240.2 | -73~260 |
| TAP-G18 | 0.18 | 0.05 | 0.23 | 6.9 | 310.3 | -73~260 |
| TAP-G20 | 0.20 | 0.05 | 0.25 | 7.2 | 350.3 | -73~260 |
| TAP-G25 | 0.25 | 0.05 | 0.30 | 7.4 | 420.4 | -73~260 |
| TAP-G35 | 0.35 | 0.05 | 0.40 | 7.6 | 450.2 | -73~260 |
| FILM PTFE | ||||||
| TAP-F Series | Backing Thickness (mm) | Adhesive Thickness (mm) | Total Thickness (mm) | Adhesive Strength (N/cm) | Tensile Strength (N/cm) | Temperature Resistance |
| TAP-F05 | 0.05 | 0.05 | 0.10 | 3.8 | 35.0 | -73~260 |
| TAP-F13 | 0.13 | 0.05 | 0.18 | 4.4 | 53.1 | -73~260 |
| TAP-F20 | 0.20 | 0.05 | 0.25 | 5.6 | 96.4 | -73~260 |
Features&Benefits:
- Perfect for extreme temperature applications, silicone adhesives perform in continuous operating temperatures from -73°C/-99F to +260°C/500F
- Excellent chemical resistance, mechanical and electrical properties and remove cleanly after use
- Acrylic adhesives perform in continous operating temperatures from -40°C/-40F to +188°C/370F
- Exceptionally resistant to solvents
- Excellent adhesion to metal and superior weathering and ageing characteristics
- Excellent shelf life with increased tack and adhesion properties
- Available in different thicknesses and PTFE coating levels
- Different textures and anti-static versions available
- Laminated, with multi -layer film versions available for ultimate performance
*PTFE Fabrics are also known as Teflon® Fabrics. Teflon® is a registered Trade mark of DuPont
Applications:
- Packaging - Heat Sealer Tapes for covering various hot wire and platen sealing equipment
- Components - Electrical insulation on high temperature transformers, coils, motors as well as lay-up and insulation for components
- Textile - Covering of dryer cylinders
- Food processing - Lining chutes and guide rails
- PVC Welding - Covering metallic and RF welding platens
- Polymer processing - Lining on solvent recovery units and protective barrier on paper/film extrusion coating lines
- Industrial Splicing & Seaming - especially of other fluoropolymenr materials
