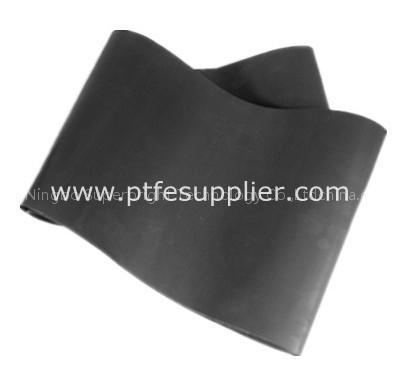

PTFE/Teflon Rotarty Printing Machine Conveyor Belt

Mesh conveyer belt is excellent release, dimensional stability and high anti-tensile strength, high operating temperature.
This conveyer belt is excellent release ,dimensional stability and high anti-tensile strength,high operating temperature:

Main features:
resistant stability---It can be used in -60ºC~+260ºC.
2.Excellent adhesive resistant property---It is easy to remove most adhesive matters,such as paste,resin,eliminate dope.
3.Mechanical property---It is no distortion and low friction

PTFE Mesh Conveyor Belt:

Style Number		FGG-5090	FGG-5110	FGG-5110*2	FNX-5130	FKG-5150
Woven Substrate	Warp	Fiberglass	Fiberglass	Fiberglass	Nomex	Kevlar
	Fill	Fiberglass	Fiberglass	Fiberglass	Nomex	Fiberglass
Weight[kg/m 2]		410±10	470±15	580±20	520±20	1530±20
Thickness	Mil	37	43	45	51	60
	MM	0.95±0.05	1.10±0.05	1.15±0.05	1.30±0.05	1.5±0.05
Tensile strength [kg/cm]		28.9±1.5	31.0±1.5	31.0±1.5	28.1±1.5	82.3±1.5
Elongation Tension Area		<1.1%	<1.1%	<1.1%	<1.1%	<0.5%

PTFE Seamless Conveyor Belt:

Standard thickness fabric 14.0-16.00/mil 0.35-0.40(mm)
Width most 60/in 1500(mm)
Seamless belt Girth (mm)
1360	1380	1440	1470	1510	1520	1530	1540	1550	1560
1580	1600	1640	1660	1680	1730	1740	1780	1820	1830
1840	1850	1870	1880	1950	2000	2040	2100	2230	2240
2250	2310	2320	2420	2440	2450	2500	2600	2630	2750
2800	2820	2850	2880	2900	3050	3080	3090	3200	3450
3540	3590	3820	3850	3890	3900	3920	3930	4200	4270
5100	5270	5400	5640	5800	6000	6440	6700
