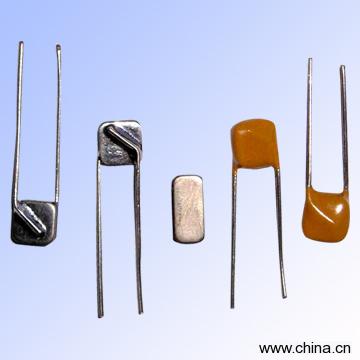

PTC resistor

Model No.:FD-250110 Product

Origin:China Brand

Name:

Price Terms:

Payment Terms:

Certification: Description:

Product Name: PTC resistor

Model Number: FD-250110

Place of Origin: ChinaFD-250110FD-250110UFD-250110B

Features: 1) Rinitial: 25oC, 7.0≤R≤12.0Ω2) I hold:110mA 40oC △＝∣△R/Rn∣＜50%3) Time to trip: a) 0.35A: ≤20sb) 0.75A: ≤5sc) 2A: ≤0.35s4) Time to reset: ≤60s5)

Size: 3.8 x 8.0 x (1.9-2.1)mm
