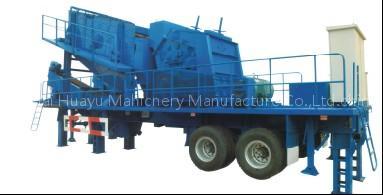

PP Series Portable Crushing and Screening Plants
Specifications
- Brand
- HY
- Origin
- Shanghai China
- Price Term
- FOB
PP Series Portable Crushing and Screening Plants is a Furniture Making Machines product. Key specs — Brand: HY; Origin: Shanghai China; Price Term: FOB.
Product Description
1. Great Mobility
2. Lower cost of transportation
3. Flexible configuration and great adaptability
4. Reliable performance and convenient maintenance
PP Jaw Plants | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300PEX |
Transport Dimension | ||||||
Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
Weight (kg) | 15240 | 22000 | 32270 | 57880 | 98000 | 25220 |
Axe Weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
King Pin Weight(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
Jaw Crusher | PEF750*1060 | |||||
Model | Pe400*600 | Pe500*750 | Pe600*900 | 750*1060 | PE900*1200 | PE300*1300 |
Feed operating (mm) | 400*600 | 500*750 | 600*900 | 80-180 | 95-225 | 300*1300 |
Setting range(c.s.s)(mm) | 40-100 | 50-100 | 65-180 | 70-150 | 100-240 | 20-90 |
Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 10-65 | ||
Feeder | ||||||
Feed Hopper Volume(m3) | 3 | 4 | 7 | 10 | 10 | 3 |
Hopper Width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490*110 | ZSW600*130 | GZT0724 |
Belt Conveyor | B1000*11 | |||||
Model | B650*6 | B800*7 | B1000*8 | B1200*13 | B1000*7 |
