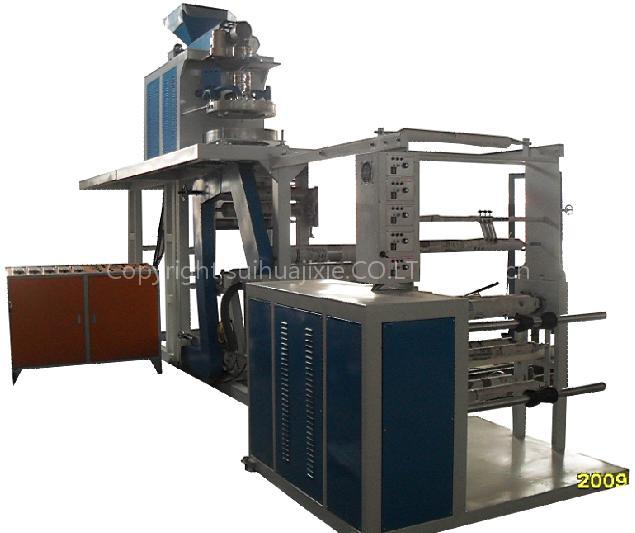

PP Rotary Die-head Film Blowing Machine

1.Usage:The machine is suitable for producing PP plastic film,which is widely used for packaging food,garment,textile,daily necessaries and industrial products,etc.

2.Rotary die-head: The die-head is plated with hard chrome and well polished. With the helical-core struture,it extrudes the fused material so evenly that the smoothness of film is can rotate 360º,which strengthens the rigidity and evenness of plastic film.

3.Screw & Cylinder:Both the screw and cylinder are made from 38CRMOAL.Treated with nitridation,they have high hardness and strong corrosion resistance.

4.Cooling set & Cooling water system:The labyrinth air-cooling set and circulating cooling water system lead to the best transparency of film.

5.Take-up equipment:The take-up equipment adopts friction or center winder. Driven by torque motor, it has strengths of smooth winding and easy operation.

6.Frame:The frame of the whole machine is made of steel,and is painted.
