PP Packing Strap Production Line

Model No.:SJPP-80A Product Origin:China Brand Name:Pacific Price Terms:EXW, FOB Ningbo / Shanghai Payment Terms:T/T, L/C Certification:ISO9001, RoSH Description:The screw of extruder is made of premium steel after fine machining and nitrogen hardening providing excellent wear resistance and longer service life.

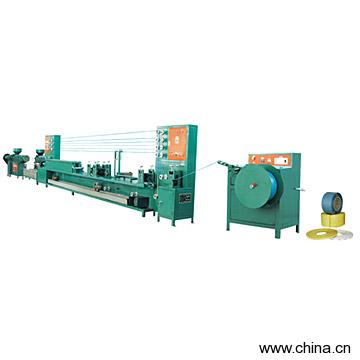

The complete system consists of nine machines including Model 80 extruder, Model 60 extruder, stainless steel cooling sizing water tank, heating air oven, stretching-printing-embossing calendar, machine winder and hand winder. The recycled PP granules and used plastic tape are used as major raw materials.

During the course of production, the granular plastic needs no drying under high temperatures or blending. In the production of PP packing tape, cheap mineral powder can be used instead of expensive PP master batch fillers.

The product quality will be raised while the production cost can be reduced substantially, so that the company gains higher profits.Machine specifications:1) Primary extruder screw: Φ80mm2) Secondary extruder screw: Φ60mm3) Primary extruder motor power: 5.5kW4) Secondary extruder motor power: 3.0kW5) Primary extruder heating power: 9.8kW6) Secondary extruder heating power: 9.0kW7) Heating air oven power: 4.8kW8) Dehydration motor power: 0.18kW9) Stretch electrical power: 2.2kW10) Winder motor power: 0.75kW11) Production capability: 40-60kg/h12) Deviation degree: < 3.0%13) Size (L x W x H): 140,000 x 1,600 x 1,300mm14) Weight: 2,100kg15) Outputted product: machine and hand-use sandwich packaging tapeProduct specifications:1) Machine-use tape: a) Width: 9.0-19.0 ± 0.5mmb) Thickness: 0.6-1.2 ± 0.05mm2) Hand-use tape: a) Width: 15.0-19.0 ± 0.5mmb) Thickness: 1.2-1.8 ± 0.05mm
