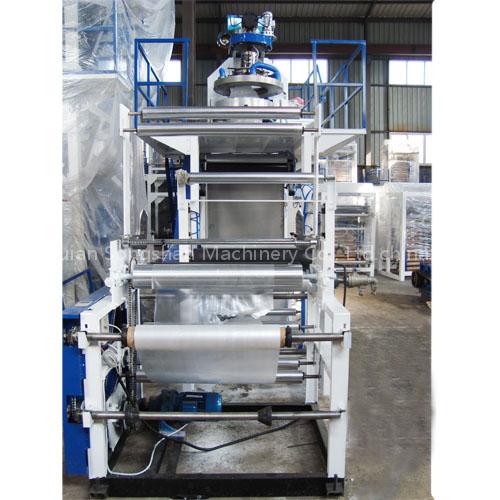

PP Film Blowing Machine/blow molding machine

Features:
This PP film blowing machine has rotary die included for this PP film blowing machine
Double winder included, for tube film and sheet film winding.
Water cooling

Optional equipments:
Air compressor, auto-loader, tubular-size controller, corona, water chiller, water pump, etc

Specifications are subject to change for improvement without advice.

MODEL		SSPP SERIES
Description		SSPP/50	SSPP/55	SSPP/65
RAW MATERIAL		PP
FILM THICKNESS	MM	0.02-0.12
FILM WIDTH(MAX)	MM	400	600	800
EXTRUDING OUTPUT	KG/HR	20-40	50-60	70-90
WHOLE POWER REQUIRED	KW	26	33	40
OVERALL DIMENSION	CM	550 x 100 x 300	570 x 130 x 400	600 x 180 x 500
NET WEIGHT	KG	2000	3000	4000
EXTRUDER		LOW SPEED TYPE
SCREW DIAMETER	MM	50	55	65
SCREW RATIO	L/D	28:1
DRIVING A.C. MOTOR	HP	11	23	28
HEATING POWER	KW	10	15	17
SCREW SPEED	RPM	0-100
COOLING BLOWER		2 1/2" X 1PC	3" X 1PCS	3" X 2PCS
TEMP. CONTROLLER	ZONE	3	3	3
DIE		SPIRAL TYPE
DIE DIAMETER	MM	100	150	220
HEATING POWER	KW	5	7	9
BLOWER	HP	3.5	3.5	5
AIR RING	SET	1	1	1
TAKE-DOWN UNIT		MOTOR TYPE
TAKE-DOWN A.C. MOTOR	HP	1	1	1
TAKE-DOWN ROLLER WIDTH	MM	500	700	900
WATER-RING	PCS	4	4	4
TAKE-DOWN SPEED	RPM	0-50
WINDER		CENTRAL TYPE/TUBE OR SHEET WINDING
WINDING ROLLER	PC	1	1	1
TORQUE MOTOR	N.M	8 X 2	8 X 2	8 X 2
WINDING WIDTH (MAX)	MM	450	750	850
