PLC and HMI Integrator is a Electronics Agents product. Key specs — Origin: China (Mainland).
Product Description

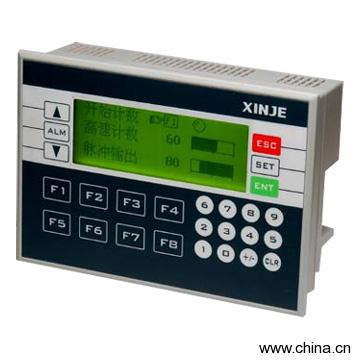

Model No.:XC3-18R Product Origin:China Brand Name: Price Terms: Payment Terms: Certification:CE, ISO9001:2000 Description:Product Name: PLC and HMI IntegratorModel Number: XC3-18RPlace of Origin: ChinaIntegrated by a PLC (XC series PLC, the exact model is: XC3-18R-E, 10 input 8 relay output) and an operate panel (OP320-A-S, support RS485, 3.
7", monochrome LCD, 192 x 64 pixels, 20 keys) This model can also insert a BD board (model XP-2TC-BD or XP-2AD2PT-BD) to fulfill your special requirement Regarding PLC, this model has 2 routes high-speed pulse output (0 - 100K) and 2 routes 32 bits high-speed count (can reach 200K at most).
So the model can realize middle or small scale control easily and convenientlyDesign: use one program cable for the program of HMI and PLC With compact structure, the model saves the electric-control tank's space greatly. Also the model's appearance is simply, compact and fashion
