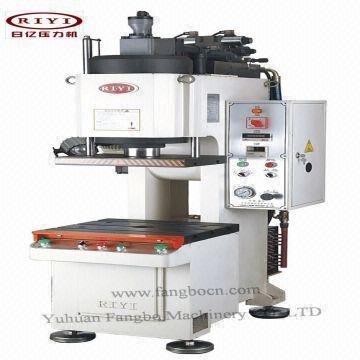

PLC Control hydraulic press with single column

Product feature

1. The C-body design, whole body cast, high rigid.

2. With a filling valve, have a high speed.

3. Key and Foot Switch two cycle start modes.

4. With PLC control, easy programming process, positioning accuracy and high precision.

5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.

6. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.

7. Infrared protection can be configured (Optional).

Technical Parameters

Theoretical output pressure 200KN(20t)

Rated oil pressure 13Mpa

Max stroke 250mm

Max Opening Height 460mm

Thoat depth 230mm

Fast-forward speed 180mm/s

Feeding speed 40mm/s

Return speed 120mm/s

The size of the working table 500 X 450mm

The height of the working table 620(770)mm

Size of the mold mounting hole Φ35mm

Power of motor 4.5kw

Power(3ΦAC,50Hz)380V

Weight 1500kg

Defferent capacity of the machine ,the special request of the stroke,the working table are also pavailable.

We can also design the specail hydraulic press machine,hydraulic riveting machine,pneumatic machine for your actual needs.

Welcome to contact me at anytime.
