Listing ID#10047735
ModelSPD51
CategoryToggle Switches
Quick answer

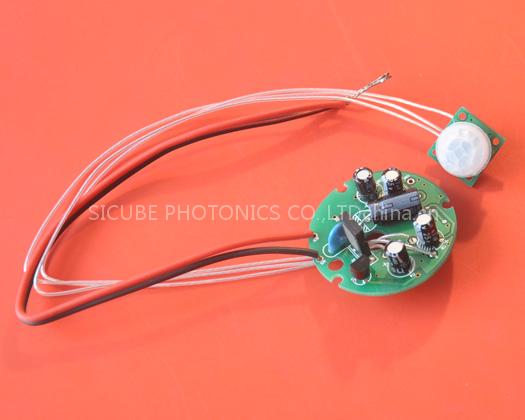

PIR sensor module is a Toggle Switches product. Key specs — Brand: SICUBE; Origin: china.
Product Description
Passive infrared sensor modules Operating voltage: AC110v± 10% or AC220v± 10% Static power loss: ≤ 50 ua Delay time: 30 secs (0.5~900 secs is optional) Detecting range: ≤ 140 degrees cone angle, ≤ 5m-7m (0~7m is optional) Triggers the way: Continuous triggering, discontinuous triggering.
(jumper) Blockade time: 0.5s-50s (acquiescently 0 seconds) Output type: High level / low level /ttl is optional Light sensor: Depend on customer requirement PCB dimension: 28*28 mm
