Listing ID#10047656
ModelD203S
CategoryToggle Switches
Quick answer

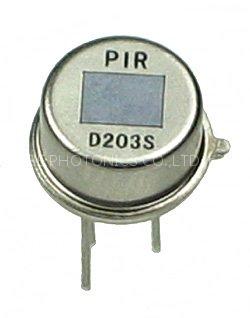

PIR sensor D203S is a Toggle Switches product. Key specs — Brand: SICUBE; Origin: china.
Product Description
Recommended Model D203S Encapsulation Type TO-5 IR Receiving Electrode 2× 1mm, 2 elements Window Size 4× 3mm Spectral Response 5-14m Transmittance ≥ 75% Signal Output [Vp-p] ≥ 3500mV Sensitivity ≥ 3300V/W ≥ 1.4 × 108 cmHz1/2/W Detectivity (D*) Noise[Vp-p] <70mV Output Balance <10% Offset Voltage 0.3-1.2V Supply Voltage 3-15V Operating Temp. -30-70C Storage Temp. -40-80C
