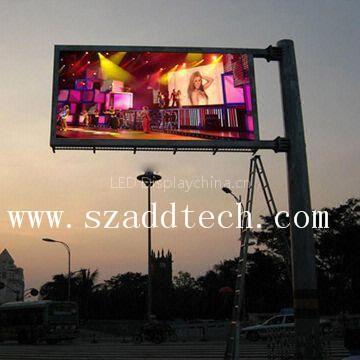

PH16 Outdoor Highway LED Digital Billboard
Listing ID#10054022
ModelP16
CategoryLED Modules
LED Modules

PH16 Outdoor Highway LED Digital Billboard

Specifications

Brand
ADDTECH
Origin
China
Request Quote
Quick answer

PH16 Outdoor Highway LED Digital Billboard is a LED Modules product. Key specs — Brand: ADDTECH; Origin: China.

Product Description

P16 Outdoor Highway LED Digital Billboard
Technical Specifications
LED Lamp Parameters
No.ItemSpecifications
1LED lampsDIP546 , Oval
2WavelengthRed LEDs620-630nm
Green LEDs520-535nm
Blue LEDs465-475nm
LED Module Specifications
1Pixel Pitch16mm
2Pixel Configuration2R1G1B
3Module Resolution16dots x 8dots
4Module Size256mm x 128mm
LED Cabinet Specifications ( Standard Cabinet )
1Cabinet Size(WxHxD)1024mm x 768mm x 150mm
2Cabinet Resolution64 x 48 pixel dots
3Module Quanity24 PCS
4Cabinet Frame Materialblack powder coated steel
5Cabinet Weight47Kg
