Listing ID#10191993
CategoryPneumatic Parts
Quick answer

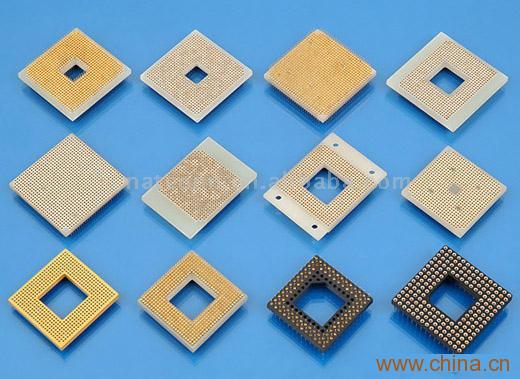

PGA Sockets and Adapters is a Pneumatic Parts product. Key specs — Origin: China (Mainland).
Product Description
Model No.:PGB Series Product
Origin:China Brand
Name:Natconn
Price Terms Payment Terms:T/T, L/C at sight
Certification: Description
Specifications:Sockets1) Pitch: 1.27, 2.54mm2) Position: 68-1,000-pin3) Pin length: 4.20-7.40mm4) Pin (outer sleeve): brass, machined, Cu Zn38Pb25) Clip (contact 6 fingers): beryllium copper, heat treated6) Plating (outer sleeve):a) Tin plated: 2μ (80μ") nickel, 5μ (200μ") tinb) Gold plated: 2μ (80μ") nickel, full gold7) Plating (contact): 2μ (80μ") nickel, gold or tin plating8) Insulator body (black): glass filled thermoplastic polyester UL94V-0Adapters1) Pitch: 1.27, 2.54mm2) Position: 68
