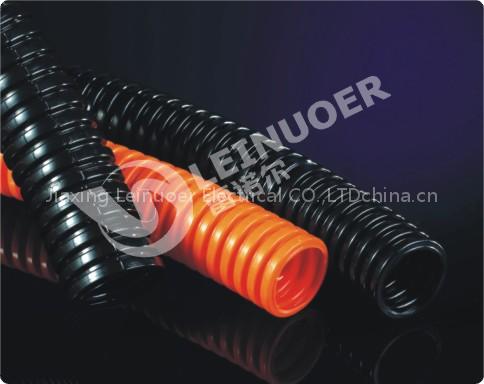

PE flexible pipe
Specifications
- Brand
- ELINUOER
- Origin
- jiaxing
- Price Term
- FOB
PE flexible pipe is a Business Services product. Key specs — Brand: ELINUOER; Origin: jiaxing; Price Term: FOB.
Product Description
Product material: PE(Polyethylene)
Working temperature: -30℃~+100℃, +120℃ can be reached but kept only for a short time
Structure: Wavy shape both interiorly and exteriorly Color: Black. Other colors are customizable upon requirements.
Property: Good flexibility, smooth and bright surface, chemical corrosion resistant
Application: It can be used in machineries, electric equipment, foodstuff machineries, automatic meters and gauges, motors, protecting the cables from abrasion and providing insulation to the wires and cables.
How to use: Insert the wires and cables into the pipe and fit respective types of LNE: SM-G and SM series flexible joints before using.
| Item No. | Specifications for flexible pipe | Inner diameter × outer diameter | Curved radius | Packaging unit |
|---|---|---|---|---|
| LNE-PE-10.0 | AD10.0 | 6.5×10.0 | 16 | 100 |
| LNE-PE-11.6 | AD11.6 | 8.0×11.6 | 16 | 100 |
| LNE-PE-13.0 | AD13.0 | 10.0×13.0 | 20 | 100 |
| LNE-PE-15.8 | AD15.8 | 12.0×15.8 | 30 | 100 |
| LNE-PE-18.5 | AD18.5 | 14.3×18.5 | 40 | 100 |
| LNE-PE-21.2 | AD21.2 | 17.0×21.2 | 45 | 100 |
| LNE-PE-25.0 | AD25.0 | 20.0×25.0 | 45 | 50 |
| LNE-PE-28.5 | AD28.5 | 23.0×28.5 | 50 | 50 |
| LNE-PE-34.5 | AD34.5 | 29.0×34.5 | 60 | 50 |
| LNE-PE-42.5 | AD42.5 | 36.0×42.5 | 70 | 50 |
| LNE-PE-54.5 | AD54.5 | 48.0×54.5 | 90 | 25 |
