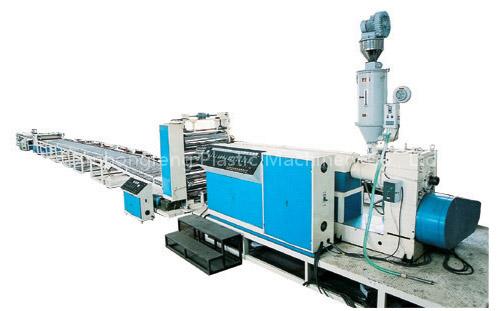

PE/PP Plastic Sheet/Board Extrusion Production Line

Product DetailPE PP plastic Sheet / Board extruding production line is a is mainly used in the products of PE or PP thicker plastic sheet / board.Product thickness:2-40 mmProduct width :750-1800mmAbout all parts of the equipment is adopted known brand products.

Our company had experiences and technologies made plastic plates(sheets),so it has the easy operation ,and the products made by us has characteristics of low cost. Clean outside,little error, antiseptic ,insulation and other merits.What's more, if you make a better change for it ,it can be made LDPE or HDPE plastic foaming sheet / board.

Extruder SJ-150X35 Single screw extruder

valid screw length(L/D) 35:1

screw rotating speed(r/min) 60-90(r/min)

main motor power 132kw

capacity 300kg/h

width of Calendar roller x diameter 1800 * 490mm

Calendar roller turning speed 0.15-3r/min

drawing speed 0.15-3r/min

drawing power 4kw

cutting power 4kw

dverall dimension of the line 45mX3.5mX4.25m
