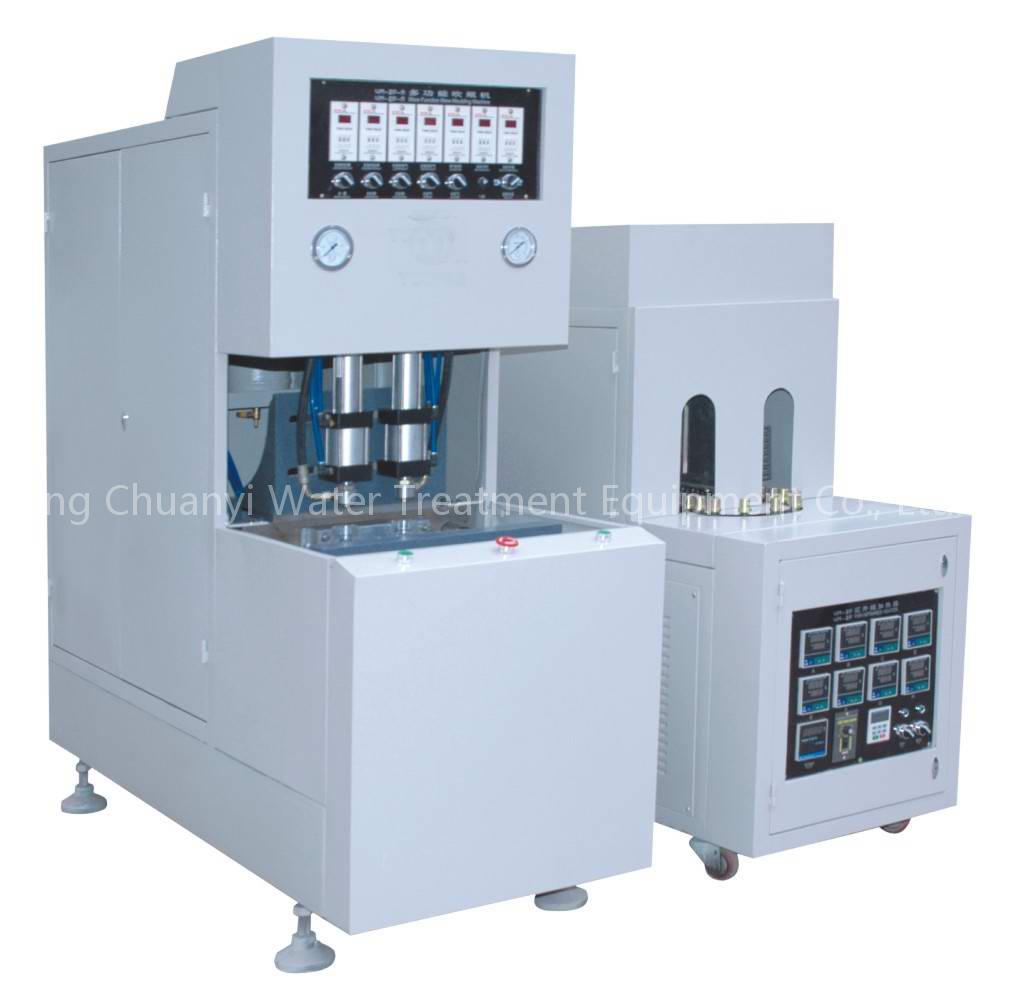

PET bottle blowing machine

PET bottle blowing machine
1)1-2mold/2-3-cavity
2)full automatic machine
3)capacity: 2000-5000BPH

PET bottle blowing machine
1)1-2mold/2-3-cavity
2)full automatic machine
3)capacity: 2000-5000BPH

1. Water chiller

This is to cooling the mold from the high temperature, there by increase the operation speed and extends the mold's life time. Because during the operation, the mold's temperature will go up, we need to use the water or fan type of chiller to cooling down the mold.

2. High pressure air compressor

It is the air source for the PET stretch blowing molding machine, it carries out the process of compression air from atmosphere to the required pressure, in order to blow up the preform into request bottle shape.

3. Low pressure air compressor

It is supply the air for the cylinder's closing, clamping and machine's movement.

1 air filter

It is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny durst and solid particles.

5. Air cooling dryer

It is to purify, remove and moisture from the compressed air and lower tempearature of the compressed air in the heat exchanger.

6. Air storage tank

It is to receive and supply air for the machine as storage. Only requested by the full automatic, 2 or more than 2 cavity blow molding machine, because these machine consumption more air, evertime compressor produce the air need times, thereby, need the air receiving tank to storage the air.

Remarks:

2 Providing the 2D drawing from you.

3 our machine's electricity is 220V/Hz50-60, if you need other form of electricity, please DO NOT FORGET to inform us.

4 Mold guarantee: 15 million shots.

5 mold steel material P20.
