PET Washing Production Line

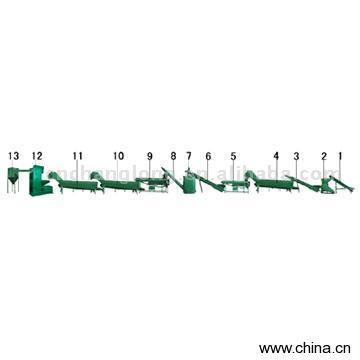

Model No.:CL-2000 Product Origin:China Brand Name: Price Terms:FOB Shanghai Payment Terms:T/T, L/C Certification: Description:Product Name: PET Washing Production LineModel Number: CL-2000Place of Origin: ChinaFeatures:1) Belt conveyer (transporter with metal detector): a) Transporter with frequency controlb) To adjust speed to requirements of line from control panelc) Conveyer stops when metal detector traces any metals and enable operator to remove this material from the belt2) Crusher: a) Designed for wet crushingb) Equipped with eight rotating and four stationery knivesc) Supplied with standard grid size of 12mm and spare grid of 16mmd) Input capacity is 800kg/he) Can be increased with 16mm grid size3) Screw conveyer (no.

6 is the same): transport flakes from crusher4) Screw washing tank (3-4 sets) (no.

10, 11 are the same): a) Flotation/sink tank separate the material according their density b) PET sinks to the bottom and is discharged by a screw conveyorc) Remains of caps and rings made of PE and labels of PP floats on the top and are moved by rotating shovels to side of washing tankd) Small screw conveyor takes them out.

This machine removes 90% of paper and plastic labels5) Friction washing tanka) The flakes are efficiently cleaned insight inclining drum with blades on rotor turing 1,200rpmb) Flakes are rubbing against each other as well as against the rotating augerc) The auger moves the flakes forward and clean last remain of dirt6) Hot water washing chamber:a) Washing the flakes from labels, dirt and other residues by water heated to 80°Cb) Overflow on top of washing chamber, remove cups and rest of the paper7) Centrifugal dryer: a) The wet flakes are dewatered in vertical conical centrifugeb) Flakes are dry to 2% of humidity8) Storage silo: 2,000L storage silo has fan blower conveyor filling station to the big bags9) Electrical control panela) Whole line is control via three panelsb) There are two types of panels: manual: switch to each machine on the panel, plus frequency control display; PLC: washing line is fully controlled by PLC and the function is displayed on touch screen10) Water sewage plant: complete water sewage plant to recycle and reclaim of sludge 11) PVC detector (optional):a) Hot oil heater working with temperature around 200°C to heat up thin wall of bottles and help to remove labels and glue from bottlesb) This heat also helps to detect any PVC bottlesc) PVC material change color under the heat (from transparent to light grey)d) Thin wall bottles shrinks under the heat and the walls of bottles become thicker to enable crusher and flotation to work better
