Listing ID#10211628
CategoryMining Machinery

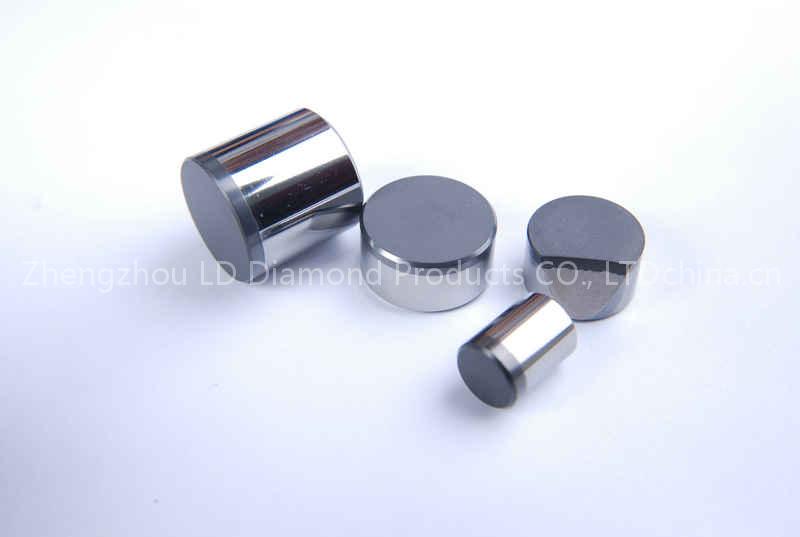

PDC cutters for PDC bit, diamond tool
Specifications
- Origin
- China (Mainland)
Quick answer
PDC cutters for PDC bit, diamond tool is a Mining Machinery product. Key specs — Origin: China (Mainland).
Product Description
(Polycrystalline Diamond Compact)cutter bit inserts are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure, they have high hardness, abrasion resistance and impact resistance, are widely used for oil/gas drill bit, rock drill and coal mining drill bit,also could be used for diamond tools for grinding, polishing.
Specification | 0608 | 0808 | 1004 | 1008 | 1308 | 1313 | 1608 | 1613 | 1908 | 1913 | 1916 |
Diameter(mm) | 6.00 | 8.20 | 10.00 | 10.00 | 13.3 | 13.44 | 16.00 | 16.00 | 19.05 | 19.05 | 19.05 |
Height(mm) | 8.00 | 8.00 | 4.00 | 8.00 | 8.00 | 13.20 | 8.00 | 13.20 | 8.00 | 13.20 | 16.00 |
Diamond Thickness(mm) | 1.00 | 1.00 | 1.00 | 1.50 | 1.50 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
