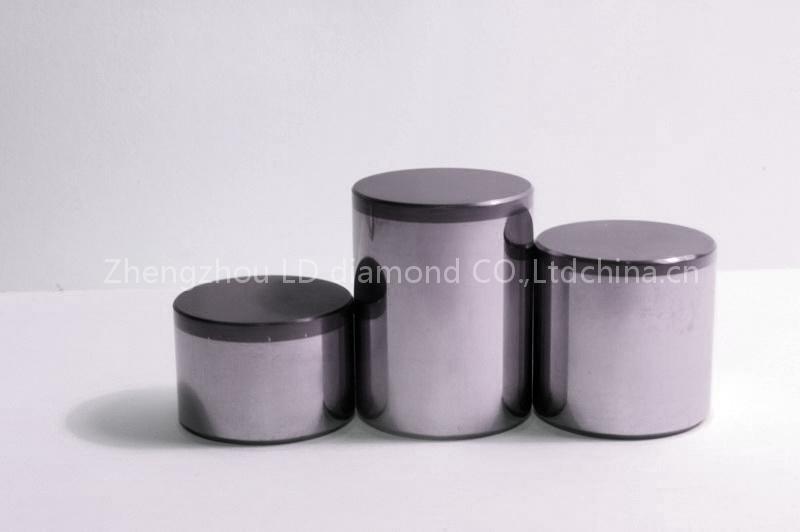

PDC/PCD cutter
Specifications
- Brand
- LD
- Origin
- china
- Price Term
- FOB
PDC/PCD cutter is a Other Farm Machines product. Key specs — Brand: LD; Origin: china; Price Term: FOB.
Product Description
2. PDC/PCD cutter Used for oil/gas drill bit, rock drill and coal mining drill bit, also could be used for diamond tools for cutting, grinding, polishing.
3. higher wear resistance, higher impact resistance PDC cutter
4. competitive price, fast delivery
We are the leading manufacture of PDC(Polycrystalline Diamond Compact)Cutters and related products.
PDC(Polycrystalline Diamond Compact)cutter bit inserts are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure,they have high hardness, abrasion resistance and impact resistance, are widely used for oil/gas drill bit, rock drill and coal mining drill bit,also could be used for diamond tools for cutting, grinding, polishing.
PDC(Polycrystalline Diamond Compact) cutters
Specification | 0608 | 0808 | 1004 | 1008 | 1308 | 1313 | 1608 | 1613 | 1908 | 1913 | 1916 |
Diameter(mm) | 6.00 | 8.20 | 10.00 | 10.00 | 13.3 | 13.44 | 16.00 | 16.00 | 19.05 | 19.05 | 19.05 |
Height(mm) | 8.00 | 8.00 | 4.00 | 8.00 | 8.00 | 13.20 | 8.00 | 13.20 | 8.00 | 13.20 | 16.00 |
Non-standard could be made as your request.
